Tech Sheet 110mm2 PVC Building Wire Red
PIR 10BWRD
10mm BUILDING WIRE RED..
$5.27 ex. GST. per metre

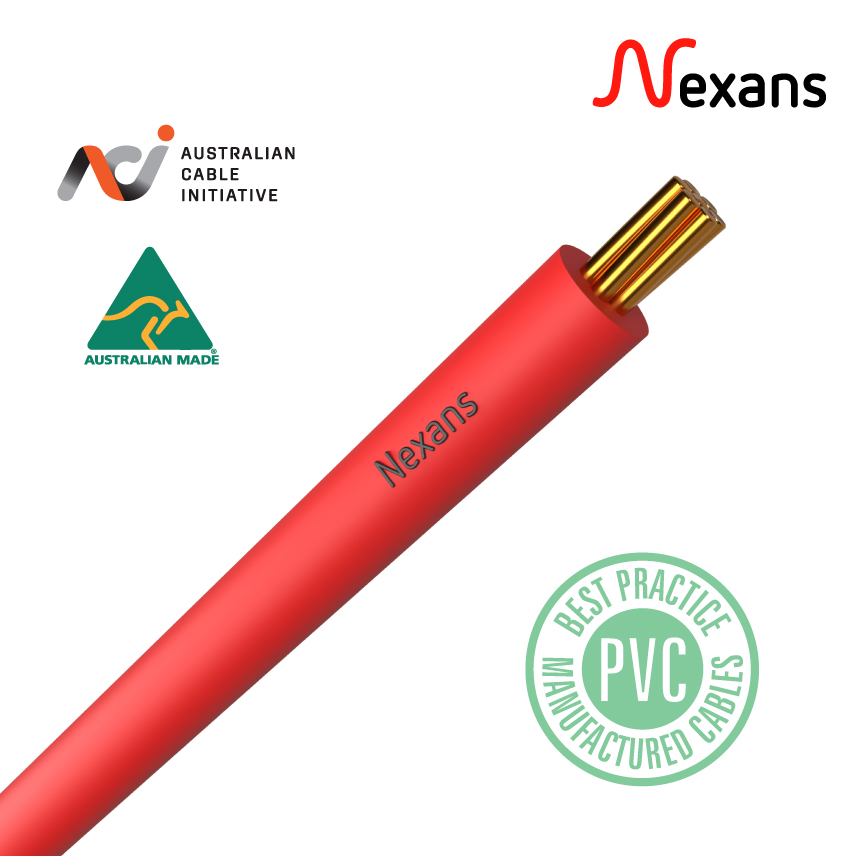

10mm2 PVC Building Wire Red 100m, 10 mm² Conductor cross-section, 6.0 mm Nominal overall diameter
Features
- to AS/NZS 5000.1 (unsheathed)
- Single core
- 0.6/1kV V-90 insulated
- Copper conductors, 90°C.
| Weight | 0.0000 kg |
|---|---|
| Colour | Red |
| Conductor flexibility | Class 2 |
| Conductor material | Copper |
| Conductor shape | Circular |
| Insulation | V-90 |
| Type of conductor | Stranded copper |
| With Green/Yellow core | No |
| With smaller neutral conductor | No |
| Approximate weight | 11.1 kg/100m |
| Cable length | 100 m |
| Conductor cross-section | 10 mm² |
| Nominal insulation thickness | 1.0 mm |
| Nominal overall diameter | 6.0 mm |
| Number of cores | 1 |
| Conductor AC resistance at 50 Hz | 2.23 Ohm/km |
| Inductive reactance at 50Hz - flat touching | 0.134 Ohm/km |
| Inductive reactance at 50Hz - trefoil | 0.118 Ohm/km |
| Insulation resistance at 20°C | 7.2 MOhm.km |
| Max. DC resistance of the conductor at 20°C | 1.83 Ohm/km |
| Rated Voltage Uo/U (Um) | 0.6/1 kV |
| Cable flexibility | Rigid |
| National | AS/NZS 1125; AS/NZS 5000.1 |
