Tech Sheet 12X16mm2 + E XLPE/PVC Circular Orange
PIR 16-2EC
16mm 2C AND ECC O/CIRC..
$11.40 ex. GST. per metre

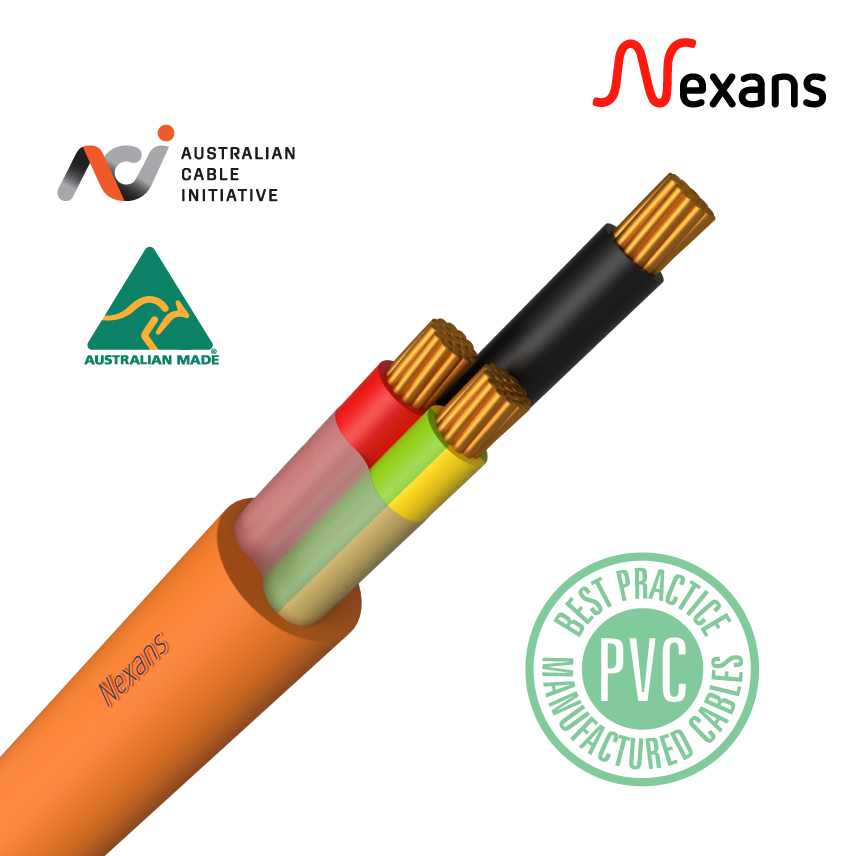

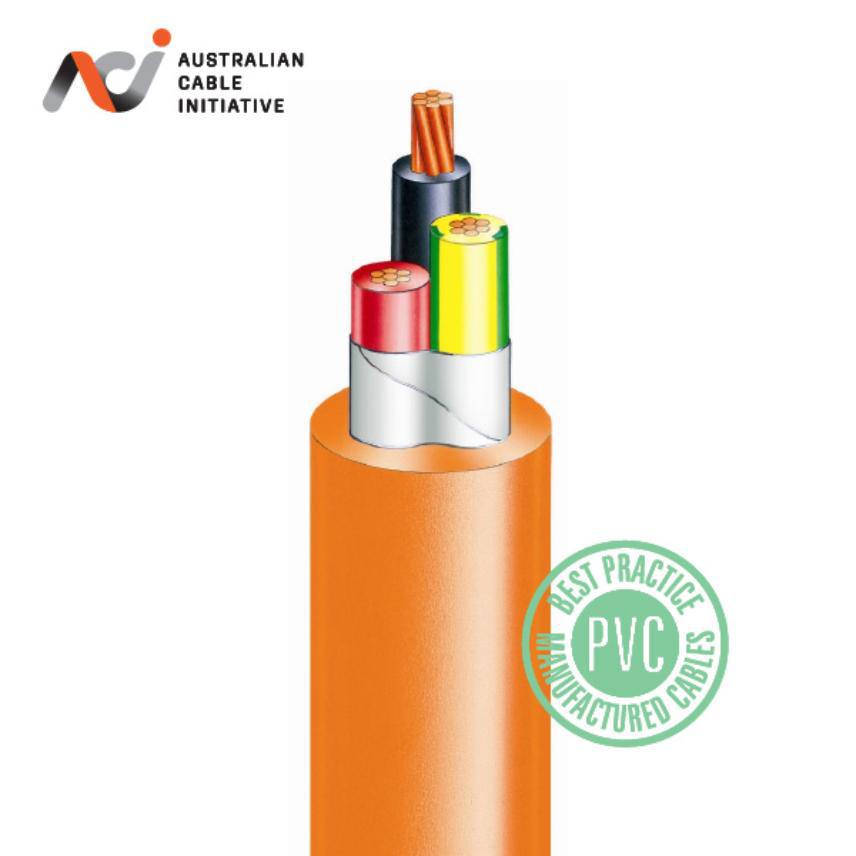

2X16mm2 + E XLPE/PVC Circular Orange, 16 mm² Conductor cross-section, 17.1 mm Nominal overall diameter
Features
- PVC sheathed to AS/NZS 5000.1
- 2 & 3 core+earth, circular
- 0.6/1kV X-90 insulated
- Copper conductors, 90°C.
| Weight | 0.0000 kg |
|---|---|
| Colour | Orange |
| Conductor flexibility | Class 2 |
| Conductor material | Copper |
| Conductor shape | Circular |
| Insulation | X-90 |
| Outer sheath | PVC |
| Type of conductor | Stranded copper |
| With Green/Yellow core | Yes |
| With smaller neutral conductor | No |
| Approximate weight | 54.0 kg/100m |
| Conductor cross-section | 16 mm² |
| Earth conductor cross section | 6 mm² |
| Nominal insulation thickness | 0.8 mm |
| Nominal outer sheath thickness | 1.8 mm |
| Nominal overall diameter | 17.1 mm |
| Number of cores | 2 |
| Number of earth cores | 1 |
| Conductor AC resistance at 50 Hz | 0.247 Ohm/km |
| Inductive reactance at 50Hz | 0.102 Ohm/km |
| Insulation resistance at 20°C | 520 MOhm.km |
| Max. DC resistance of the conductor at 20°C | 1.15 Ohm/km |
| Rated Voltage Uo/U (Um) | 0.6/1 kV |
