Tech Sheet 116mm2 XLPE / PVC SDI Black 1000m
PIR 16XLPE
16mm XLPE COPPER..
$7.93 ex. GST. per metre

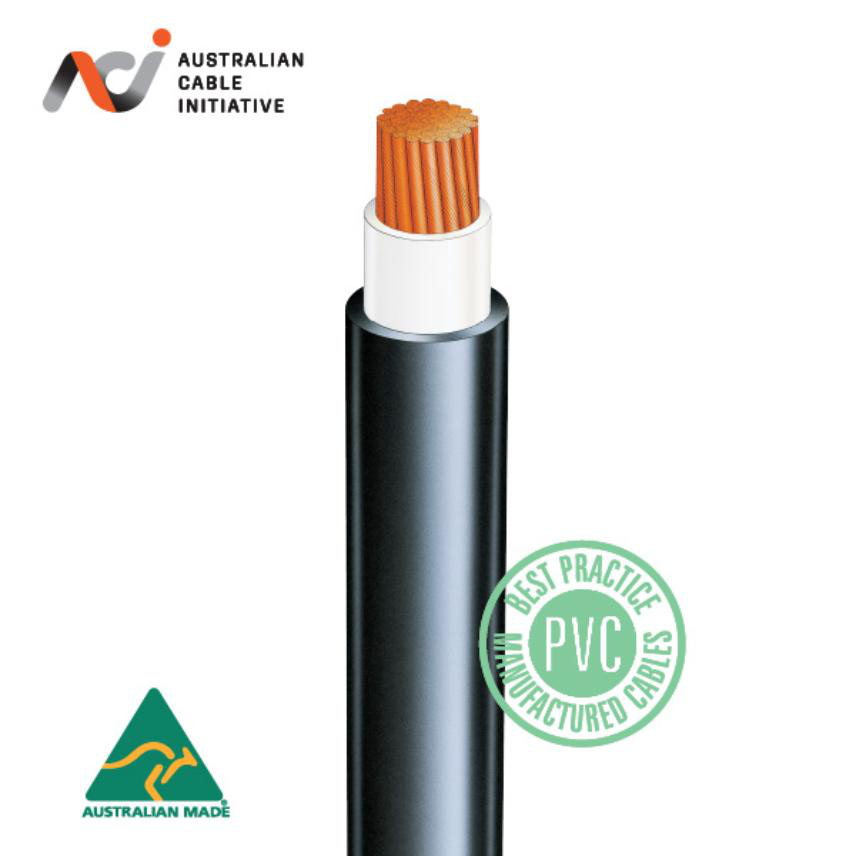

XLP 1X16 PC XLPPVC 1000M, 16 mm² Conductor cross-section, 9.3 mm Nominal overall diameter
Features
- Single core, 0.6/1kV X-90 insulated
- Copper 90°C.
- PVC sheathed to AS/NZS 5000.1
| Weight | 0.0000 kg |
|---|---|
| Colour | Black |
| Conductor flexibility | Class 2 |
| Conductor material | Copper |
| Conductor shape | Circular |
| Insulation | X-90 |
| Outer sheath | PVC |
| Type of conductor | Stranded copper |
| With Green/Yellow core | No |
| With smaller neutral conductor | No |
| Approximate weight | 21.0 kg/100m |
| Cable length | 1000 m |
| Conductor cross-section | 16 mm² |
| Nominal insulation thickness | 0.8 mm |
| Nominal outer sheath thickness | 1.4 mm |
| Nominal overall diameter | 9.3 mm |
| Number of cores | 1 |
| Conductor AC resistance at 50 Hz | 0.236 Ohm/km |
| Inductive reactance at 50Hz - flat touching | 0.102 Ohm/km |
| Inductive reactance at 50Hz - trefoil | 0.087 Ohm/km |
| Insulation resistance at 20°C | 370 MOhm.km |
| Max. DC resistance of the conductor at 20°C | 1.15 Ohm/km |
| Rated Voltage Uo/U (Um) | 0.6/1 kV |
