Tech Sheet 11.0mm2 PVC SDI Red Insulation White Sheath 100m
PIR 1/113-1R
1MM SDI RED..
$0.65 ex. GST. per metre

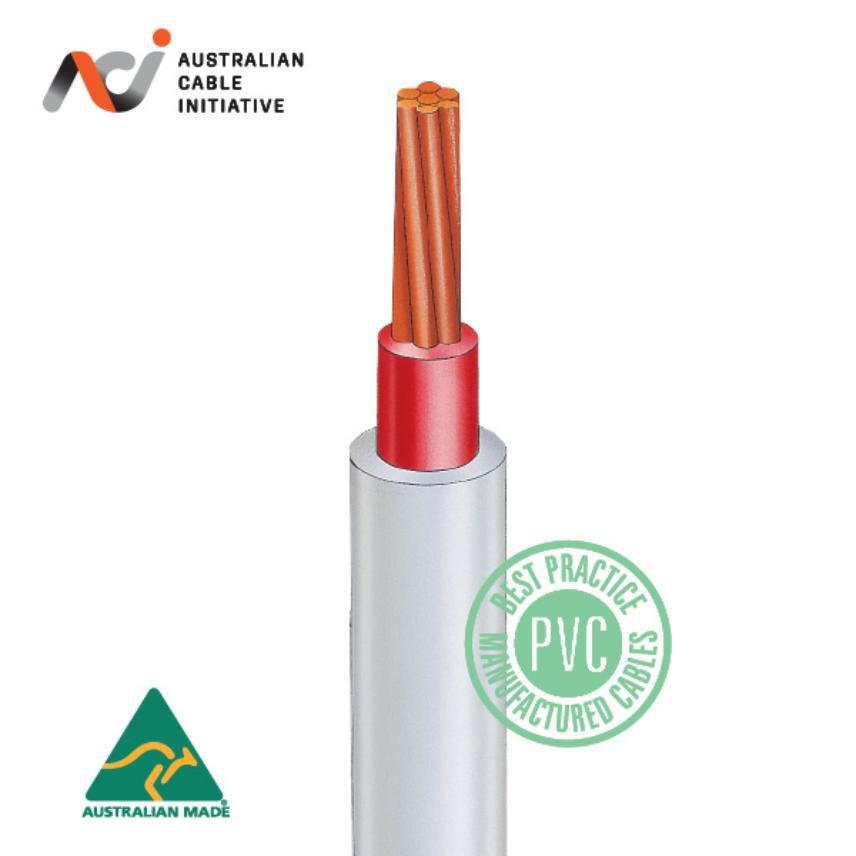

1.0mm2 PVC SDI Red Insulation White Sheath 100m, 1 mm² Conductor cross-section, 4.0 mm Nominal overall diameter
Features
- PVC sheathed to AS/NZS 5000
- Single core, V-90 insulated
- Copper conductors, 90°C.
- Larger sizes; 25 to 630mm2 0.6/1kV to AS/NZS 5000.1 are available on request
- 1.0 to 16mm2 450/750V to AS/NZS 5000.2
| Weight | 0.0000 kg |
|---|---|
| Dimensions | 6135128 × 61351727 cm |
| Colour | White / red |
| Conductor flexibility | Solid class 1 |
| Conductor material | Copper |
| Insulation | V-90 |
| Outer sheath | PVC |
| Type of conductor | Solid, Class 1 |
| With Green/Yellow core | No |
| With smaller neutral conductor | No |
| Approximate weight | 2.7 kg/100m |
| Cable length | 100 m |
| Conductor cross-section | 1 mm² |
| Nominal insulation thickness | 0.6 mm |
| Nominal outer sheath thickness | 0.8 mm |
| Nominal overall diameter | 4.0 mm |
| Number of cores | 1 |
| Conductor AC resistance at 50 Hz | 25.8 Ohm/km |
| Inductive reactance at 50Hz - flat touching | 0.184 Ohm/km |
| Inductive reactance at 50Hz - trefoil | 0.168 Ohm/km |
| Insulation resistance at 20°C | 13 MOhm.km |
| Max. DC resistance of the conductor at 20°C | 18.1 Ohm/km |
| Rated Voltage Uo/U (Um) | 450 / 750 V |
| Cable flexibility | Rigid |
