Tech Sheet 110X2.5mm2 + E PVC SWA Control Cable

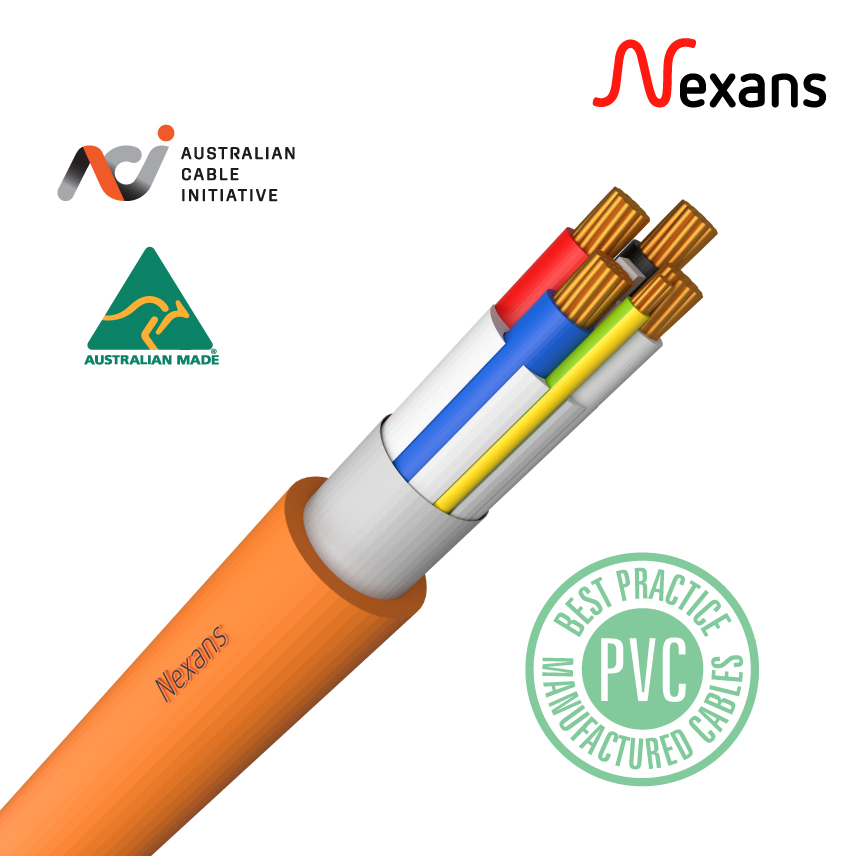

PIR 7/067-4EC
2.5mm 4C AND ECC O/CIRC..
$6.93 ex. GST. per metre

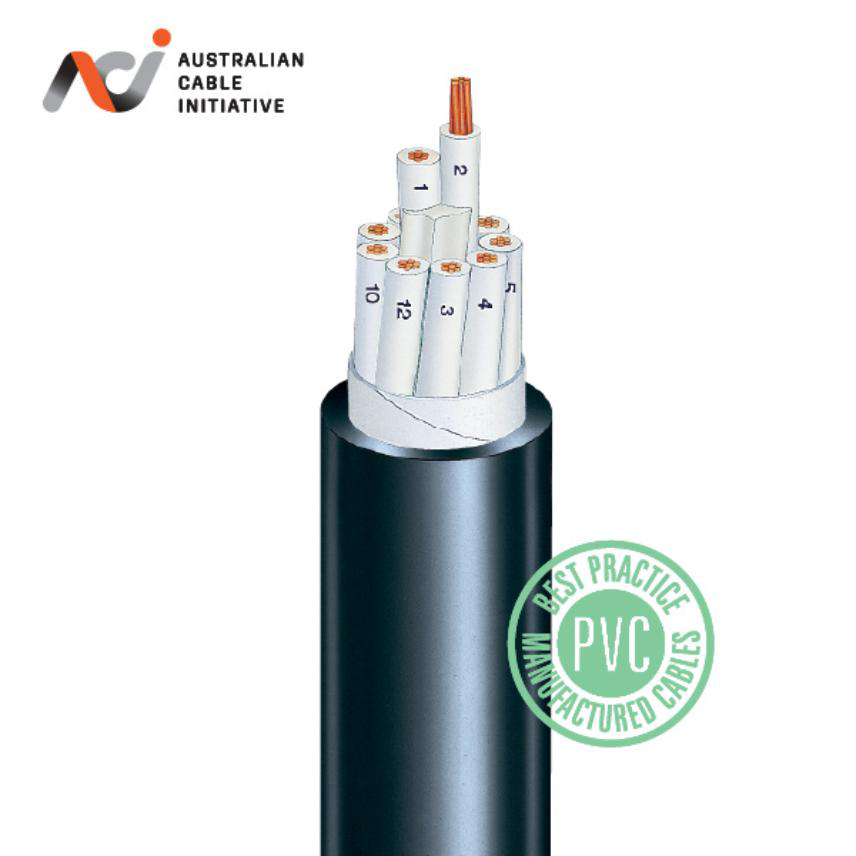

CIRC 10X2.5E PC PVCPVCSWPVC, 2.5 mm² Conductor cross-section, 22.7 mm Nominal overall diameter
Features
- 0.6/1kV
- PVC bedded
- Steel wire armoured
- V-90 insulated
- PVC sheathed to AS/NZS 5000.1
- Copper conductors, 90°C.
- Multicore circular+earth
| Weight | 0.0000 kg |
|---|---|
| Armour type | Steel wires |
| Colour | Black |
| Insulation | V-90 |
| Material of bedding | PVC filler |
| Outer sheath | PVC |
| With Green/Yellow core | Yes |
| Approximate weight | 100.0 kg/100m |
| Conductor cross-section | 2.5 mm² |
| Diameter over armour | 19.0 mm |
| Nominal diameter over bedding | 16.5 mm |
| Nominal overall diameter | 22.7 mm |
| Number of cores | 10 |
| Number of earth cores | 1 |
| Conductor AC resistance at 50 Hz | 9.45 Ohm/km |
| Inductive reactance at 50Hz | 0.102 Ohm/km |
| Insulation resistance at 20°C | 14 MOhm.km |
| Max. DC resistance of the conductor at 20°C | 7.41 Ohm/km |
| Rated Voltage Uo/U (Um) | 0.6/1 kV |
| National | AS/NZS 1125; AS/NZS 5000.1 |
