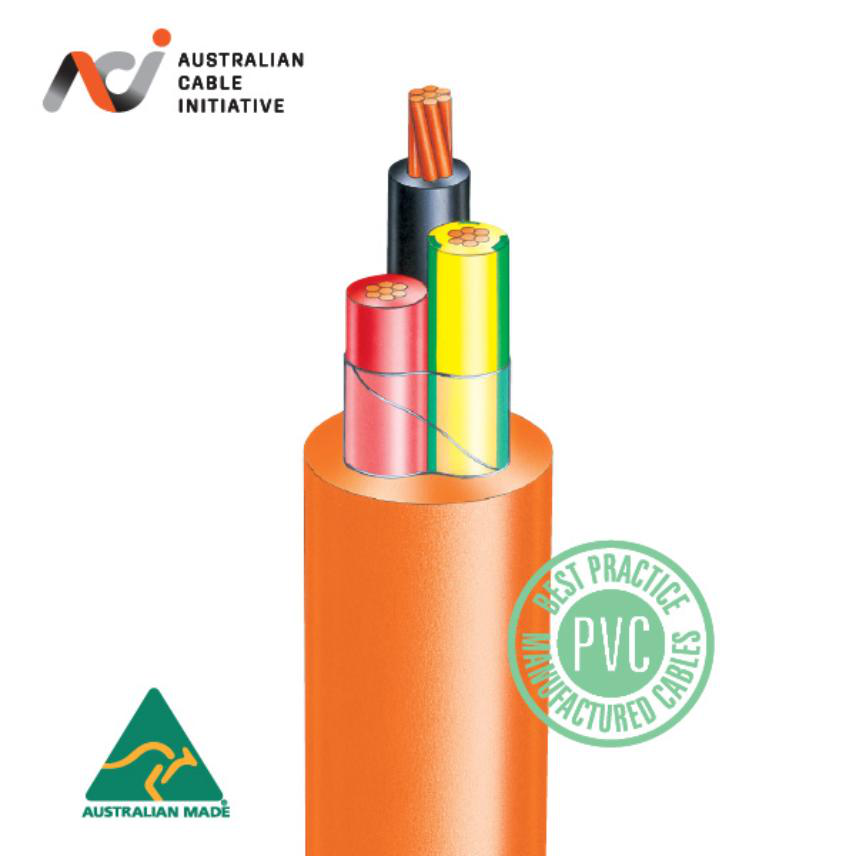

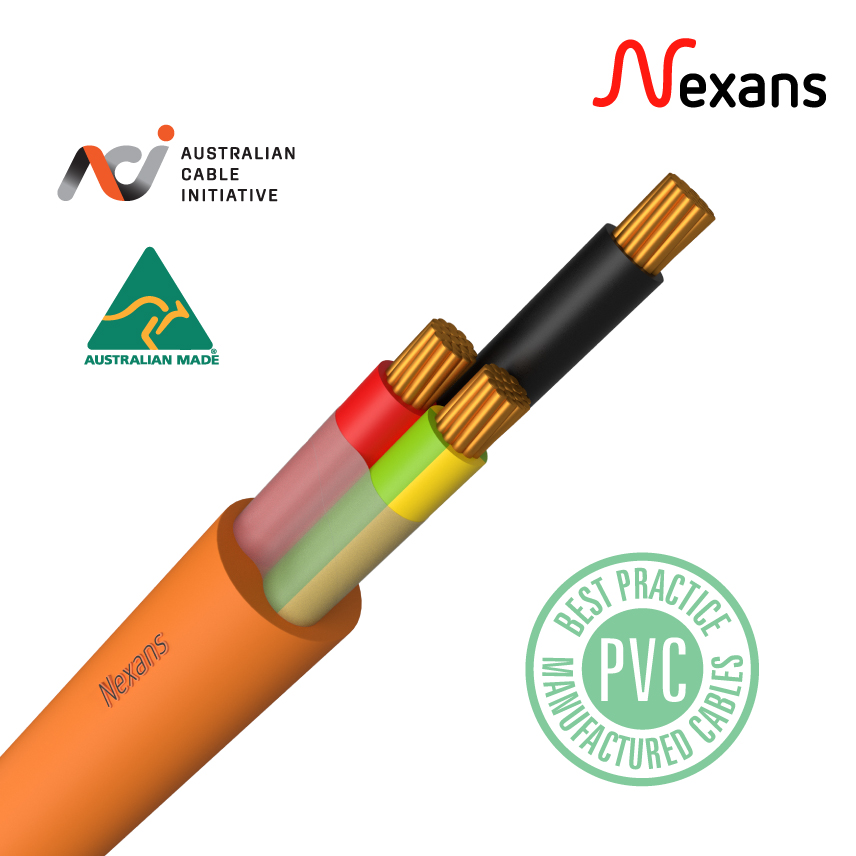

Tech Sheet 12X4mm2 + E PVC Circular Orange
PIR 4.0-2EC
4mm 2C AND ECC O/CIRC..
$7.20 ex. GST. per metre
4mm 2C&E O/C (450/750v) 500m, 4 mm² Conductor cross-section, 11.4 mm Nominal overall diameter
Features
- V-90 insulated
- 2 & 3 core+earth, circular
- PVC sheathed to AS/NZS 5000
- Stranded Copper conductors
| Weight | 0.0000 kg |
|---|---|
| Colour | Orange |
| Conductor flexibility | Class 2 |
| Conductor material | Copper |
| Conductor shape | Circular |
| Insulation | V-90 |
| Outer sheath | PVC |
| Type of conductor | Stranded copper |
| With Green/Yellow core | Yes |
| With smaller neutral conductor | No |
| Approximate weight | 20.8 kg/100m |
| Cable length | 500 m |
| Conductor cross-section | 4 mm² |
| Earth conductor cross section | 2.5 mm² |
| Nominal insulation thickness | 0.8 mm |
| Nominal outer sheath thickness | 1.3 mm |
| Nominal overall diameter | 11.4 mm |
| Number of cores | 2 |
| Conductor AC resistance at 50 Hz | 5.61 Ohm/km |
| Inductive reactance at 50Hz | 0.102 Ohm/km |
| Insulation resistance at 20°C | 12 MOhm.km |
| Max. DC resistance of the conductor at 20°C | 4.61 Ohm/km |
| Rated Voltage Uo/U (Um) | 450 / 750 V |
Warranty starts from invoice date.
Warranty period: 0
Warranty method:
