Tech Sheet 14mm2 PVC Building Wire White
PIR 4.0BWWH
4mm BUILDING WIRE WHITE..
$2.34 ex. GST. per metre

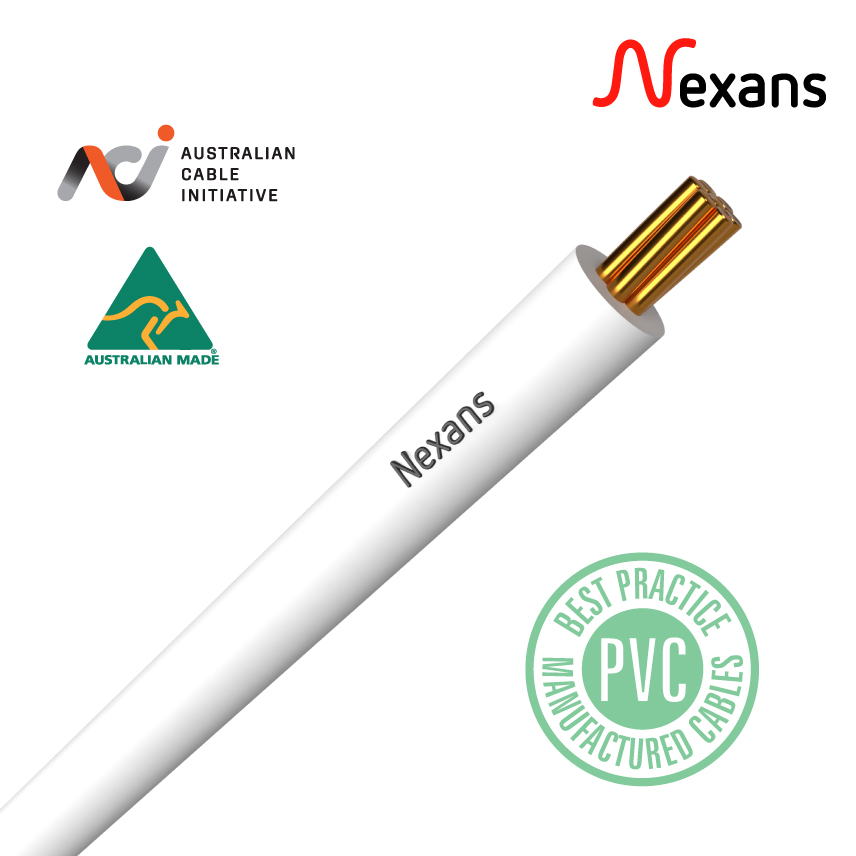

4mm2 PVC Building Wire White 100m, 4 mm² Conductor cross-section, 4.5 mm Nominal overall diameter
Features
- Single core
- Copper conductors, 90°C.
- to AS/NZS 5000.1 (unsheathed)
- 0.6/1kV V-90 insulated
| Weight | 0.0000 kg |
|---|---|
| Colour | White |
| Conductor flexibility | Class 2 |
| Conductor material | Copper |
| Conductor shape | Circular |
| Insulation | V-90 |
| Type of conductor | Stranded copper |
| With Green/Yellow core | No |
| With smaller neutral conductor | No |
| Approximate weight | 5.1 kg/100m |
| Cable length | 100 m |
| Conductor cross-section | 4 mm² |
| Nominal insulation thickness | 1.0 mm |
| Nominal overall diameter | 4.5 mm |
| Number of cores | 1 |
| Conductor AC resistance at 50 Hz | 5.61 Ohm/km |
| Inductive reactance at 50Hz - flat touching | 0.152 Ohm/km |
| Inductive reactance at 50Hz - trefoil | 0.137 Ohm/km |
| Insulation resistance at 20°C | 10 MOhm.km |
| Max. DC resistance of the conductor at 20°C | 4.61 Ohm/km |
| Rated Voltage Uo/U (Um) | 0.6/1 kV |
| Cable flexibility | Rigid |
| National | AS/NZS 1125; AS/NZS 5000.1 |
Warranty starts from invoice date.
Warranty period: 0
Warranty method:
