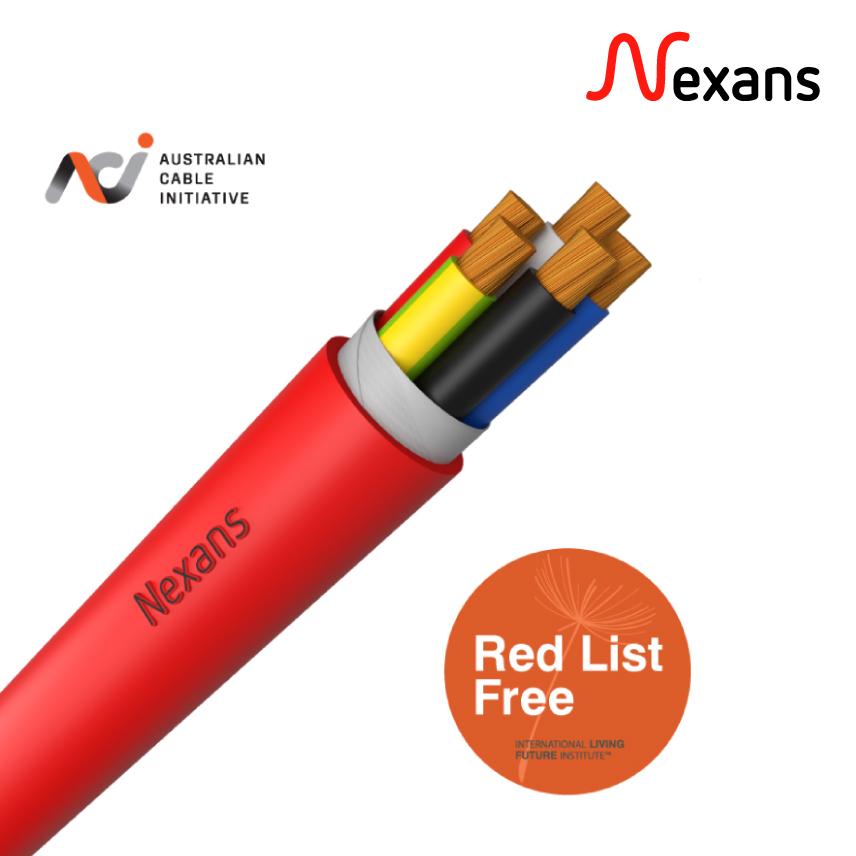

Tech Sheet 1ALSECURE® PLUS Mica/X-HF-110/HFS-110-TP 0.6/1 kV Rated Multicore Power Cable
PIR 6.0-4ECFR
6mm 4CANDE FIRE RATED..
$28.62 ex. GST. per metre
4 Core + Earth 6mm2 0.6/1.0kV Alsecure Plus Multicore, 6 mm² Conductor cross-section, 18.034 mm Nominal overall diameter
Features
- WS52W Fire Rated to AS/NZS 3013
- Flexible stranded copper conductor
- 110ºC rated insulation and sheath
- Flexibilitiy for fast, easy installation (10mm2 and above)
- Safer evacuation and protection of essential safety systems
- Halogen free, low smoke, low toxic and corrosive emissions, and flame retardant materials
- Contributes to the green star rating of your project
| Weight | 0.0000 kg |
|---|---|
| Conductor flexibility | Class 2 |
| Conductor material | Copper |
| Conductor shape | Circular |
| Insulation | X-HF-110 |
| Outer sheath | HFS-110-TP |
| With Green/Yellow core | Yes |
| With smaller neutral conductor | No |
| Approximate weight | 51.63 kg/100m |
| Conductor cross-section | 6 mm² |
| Nominal insulation thickness | 0.7 mm |
| Nominal outer sheath thickness | 1.8 mm |
| Nominal overall diameter | 18.034 mm |
| Number of cores | 4 |
| Max. DC resistance of the conductor at 20°C | 3.077 Ohm/km |
| Rated Voltage Uo/U (Um) | 0.6/1 kV |
| Cable flexibility | Flexible |
| Maximum operating temperature | 110 °C |
| National | AS/NZS 3013; AS/NZS 5000.1 |
