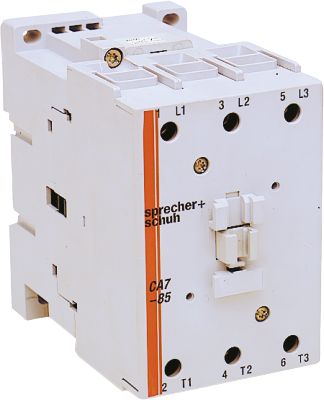

NHP CA78500240VAC

CONTACTOR 3P 45KW 240V AC COIL

$1,145.20 ex. GST.

CONTACTOR 45kW 3P 240V AC COIL

SKU: NHP CA78500240VAC Category:
Height Width
mm mm

Features

  • Compact dimensions saves panel space
  • Several contactor families provide a wide variety of contactor sizes, offering economy and selection

Contactor 3 pole 85A 45kW 240V AC Coil

Weight 0.0000 kg
Product Series

CA7

Ie, Rated Operational Current, AC-1, 415V, 40°C [A@415V,40°C]

100

kW Rating, AC-3, 415V, 60°C [kW @415V, 60°C]

45

Ie, Rated Operational Current, AC-3, 415V, 60°C [A@415V,60°C]

85

kW Rating, AC-3, 690V, 60°C [kW @690V, 60°C]

45

Ie, Rated Operational Current, AC-3, 690V, 60°C [A@690V,60°C]

49

Number of Poles

3

Contact Configuration, Main Poles [main poles]

3 NO

Coil Type [type]

Conventional

Coil Consumption Hold-in VA AC coiled contactors [VA]

6.5;19

Coil Consumption Hold-in W DC coilded contactors [W]

4.5

Coil Consumption Pickup VA AC coiled contactors [VA]

235

Coil Consumption Pickup W DC coiled contactors [W]

200

Integrated Aux

No Auxiliary Contacts

Coil Voltage [V]

240 V AC

Un, Coil Voltage, AC @50Hz, Nom [V AC nom @50Hz]

240

Un, Coil Voltage, AC @50Hz, Min [V AC min @50Hz]

204

IΔc, Rated Conditional Residual Short-Circuit Current [A]

6000

Un, Coil Voltage, AC @50Hz, Max [V AC max @50Hz]

264

Un, Coil Voltage, AC @60Hz, Nom [V AC nom @60Hz]

277

Un, Coil Voltage, AC @60Hz, Min [V AC min @60Hz]

235

Un, Coil Voltage, AC @60Hz, Max [V AC max @60Hz]

304
