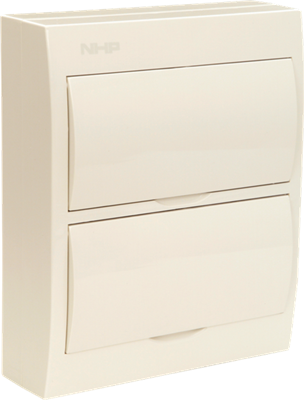

NHP CSB24SW

LOADCENTRE 24 WAY DIN SURFACE WHITE DOOR

$192.00 ex. GST.

LOADCENTRE 24 WAY DIN SURFACE WHITE DOOR

SKU: NHP CSB24SW Category:
Height Width
326 mm 269 mm

Features

  • MOD6 range of pole covers and loadcentres to suit MOD6 MCBs, RCDs and RCBOs
  • Surface mount or flush mount
  • Insulated enclosure
  • AS/NZS 3439.3
  • Pole covers up to 4 poles and loadcentre up to 36 poles

CSB surface mount loadcentre, 24way, white door

Weight 0.0000 kg
MCB Type

DIN Profile

Material, Body / Housing [material]

ABS

Colour, Body / Housing [colour]

White

Material, door

White-ABS, Clear PC ( PolyCarbonate)

Colour, Door [door]

White

Ue, rated operational voltage, AC, 3ph, nom [V AC]

415

Ue, rated operational voltage, AC, 1ph, nom [V AC]

240

In, Rated Current [A]

100

In, rated current, busbar comb, centre feed [A]

130

In, rated current, busbar comb, end feed [A]

80

Number of Poles

24

Tunnels, neutral bar

10/3/3/3/3

Tunnels, earth bar

24

Mounting

Surface Mount

Height [mm]

326

Width [mm]

269

Depth [mm]

97

Earth and Neutral bar Rating

100 A 16 mm tunnel terminals

IP Rating

IP40

Standards Compliance

AS/NZS 3439.3

Warranty starts from invoice date.

Warranty period: 0

Warranty method:
