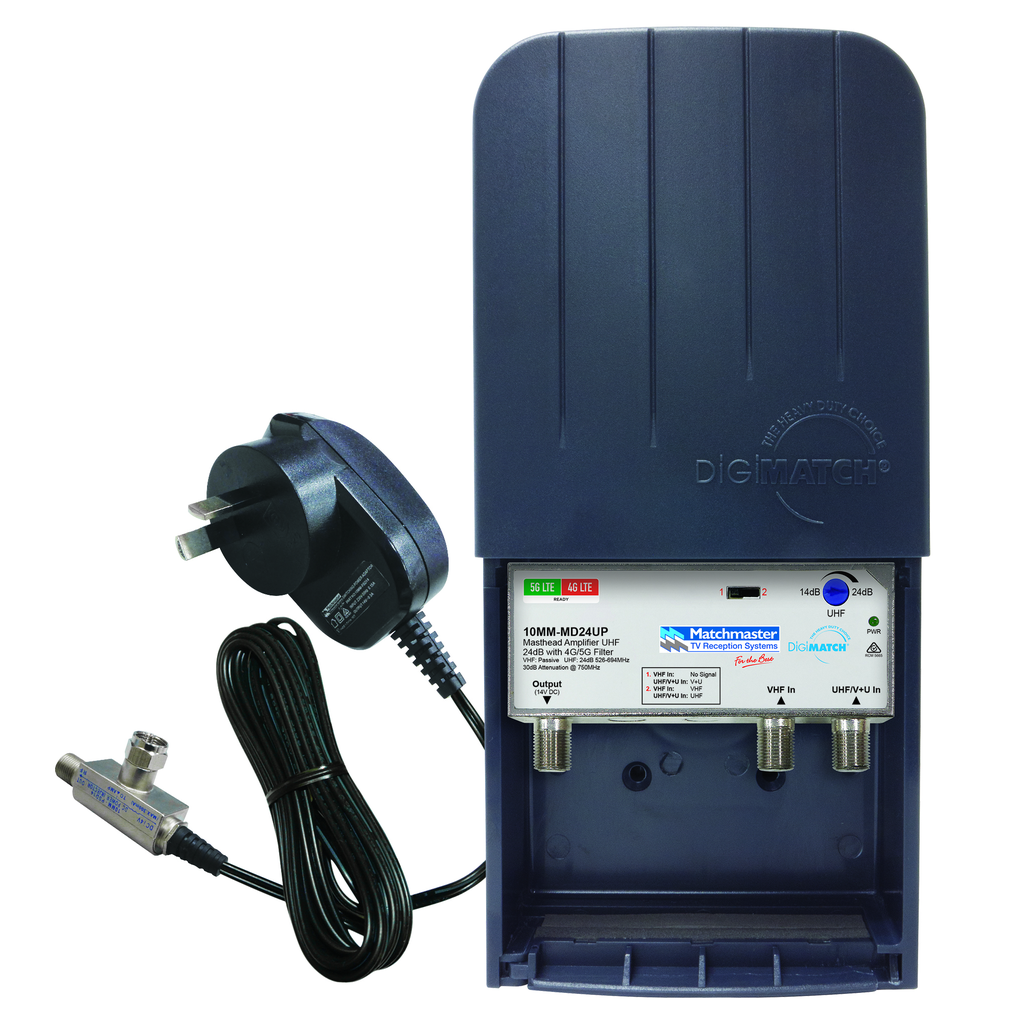

Tech Sheet 1The MD24UP is a UHF 24dB masthead amplifier with a VHF passive pass through. Featuring >30dB of 4G/5G LTE filtering to prevent interference from mobile transmission.
MAT 10MM-MD24UP
MASTHEAD AMP UHF 24DB – 4G FILTER + POWER SUPPLY
$90.71 ex. GST.
Masthead Amplifier UHF 24dB with 4G/5G Filter and Power Supply
Features
- Heavy duty UV stable outdoor weather proof casing
- Can be used with separate UHF/VHF antennas or combined UHF/VHF antennas
- 4G and 5G LTE filter built in from 694MHz. Filter Attenuation @ 750MHz: >30dB at maximum gain for UHF of 24dB
- VHF switch diplexing with maximum attenuation of 2.84dB at 230MHz
- Maximum gain of 24dB with 10dB of adjustment
- Includes 14V DC power supply and cable ties for mounting
| Weight | 0.0000 kg |
|---|
Warranty starts from invoice date.
Warranty period: 0
Warranty method:
