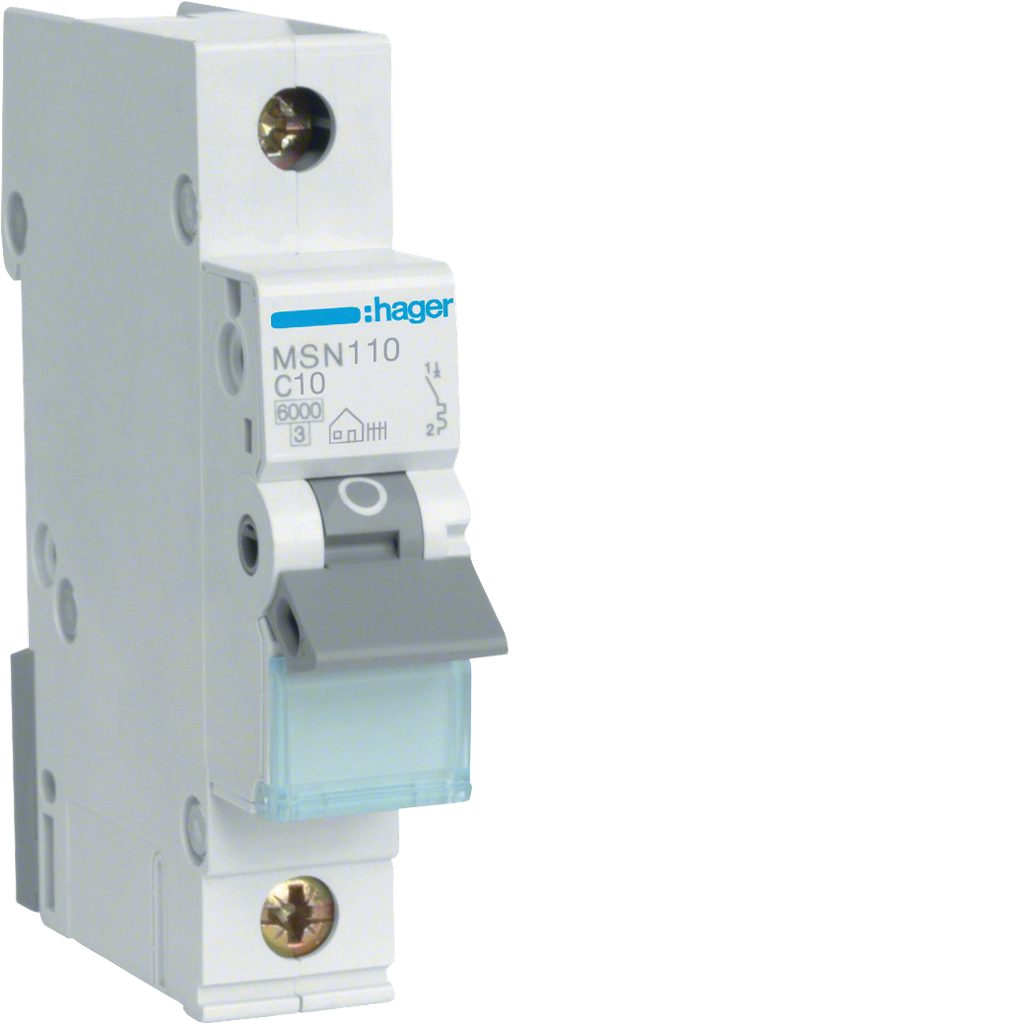

HAG MSN110

MCB 1P 6KA C-10A 1M

$4.85 ex. GST.

MCB 1P 6kA C-10A 1M

SKU: HAG MSN110 Category:

Features

Weight 0.0000 kg
Country of Origin

CN

Rated current

10 A

Rated insulation voltage Ui

500 V

Voltage type

AC

Rated impulse withstand voltage Uimp

4000 V

Ambient temperature during operating

-25…70 °C

Suitable for flush-mounted installation

1

Over voltage category

3

Frequency

50 to 60 Hz

Release characteristic

C

Number of protected poles

1

Connectable conductor cross section multi-wired

1 / 25 mm²

Number of poles (total)

1 P

Built-in depth

70 mm

Connectable conductor cross section solid-core

1 / 35 mm²

Rated short-circuit breaking capacity Icn EN 60898 at 230 V

6 kA

Rated voltage

240 / 415 V

Pollution degree

2

Width in number of modular spacings

1

Current limiting class

3

Degree of protection (IP)

IP20

Additional equipment possible

1
