Tech Sheet 1MCB 6KA 1P 10A C CURVE DIN

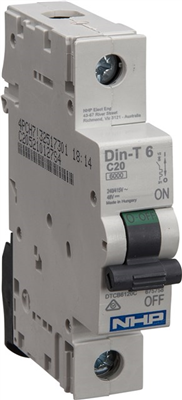

NHP DTCB6110C
MCB DIN-T6 6KA 1P 10A C CURVE
$28.60 ex. GST.
MCB DIN-T6 6KA 1P 10A C CURVE
| Height | Width |
|---|---|
| 86 mm | 18 mm |
Features
- DIN rail mounting
- Free tripping mechanism even if toggle is locked ON or OFF
- High speed and rapid arc quenching technology ensuring the highest level of protection is provided
| Weight | 0.0000 kg |
|---|---|
| Trip Curve | C |
| In, Rated Current at 30°C [A @30°C] | 10 |
| Un, Nominal Operational Voltage(s), AC [V AC] | 240;415 |
| Ics, Rated Service Short-Circuit Breaking Capacity, AC (IEC 60898) [% Icn] | 100 |
| Ics, Rated Service Short-Circuit Breaking Capacity, AC (IEC 60947) [% Icu] | 75 |
| Neutral Pole Protected | Yes |
| Poles | 1P |
| Icn, Rated Short-Circuit Capacity, 1P, 230/400V AC [kA] | 6 |
| Icu, Rated Ultimate Short-Circuit Breaking Capacity, 400/415V AC [kA @400/415VAC] | 3 |
| Un, Nominal Operational Voltage, AC [V AC] | 240 |
| Mounting | DIN-35 Rail Mount |
| Impulse Withstand Test Voltage [kV] | 6 |
| Ui, Rated Insulation Voltage @ Pollution Degree 2 [V] | 500 |
| Height [mm] | 86 |
| Un, Nominal Operational Voltage, DC [V DC] | 48 |
| Width [mm] | 18 |
| Depth [mm] | 76 |
| Ubmin, Service Voltage, AC, Min [V AC] | 12 |
| Utilisation Category | A |
| Ubmax, Service Voltage, AC, Max [V AC] | 250 |
| Details, Trip Characteristics | @400Hz = 1.5 x mag. trip; @DC = 1.4 x mag. trip |
| Ui, Rated Insulation Voltage @ Pollution Degree 3 [V] | 440 |
