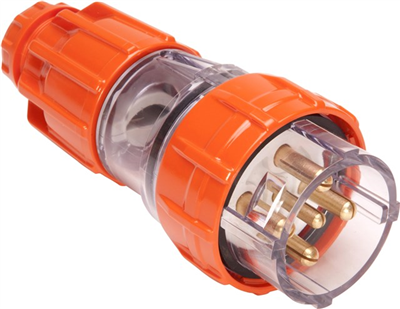

Tech Sheet 1Plug Straight 5 Pin 40A Electric Orange
NHP ISOPS540P
PLUG STRAIGHT 5 ROUND PINS 40A 500V AC EO
$209.92 ex. GST.
PLUG STRAIGHT 5 ROUND PINS 40A 500V AC EO
| Height | Width |
|---|---|
| mm | mm |
Features
- Suitable for most industrial and commercial applications
- Designed and tested to AS/NZS 3112 and AS/NZS 3123
- Large range covering 10 to 50A in 3, 4 and 5 pin configurations
- Components available: Switched Socket outlets, Switches, Socket Outlets, Plugs, Extension Sockets, Appliance Inlets, RCD Protected Outlets, Back Boxes and large range of accessories
- User friendly design with extruded ribbed grips, large switch handle and large socket latches for easy operation with or without gloves
- High ingress protection of IP66 across the range
| Weight | 0.0000 kg |
|---|---|
| Material, Body / Housing [material] | PC (Polycarbonate) |
| Colour, Body / Housing [colour] | Electric Orange |
| In, Rated Current [A] | 40 |
| Chemical Resistant Body / Housing [body] | No |
| Pin Configuration | 5 round |
| Plug Type | Straight |
| Un, Nominal Operational Voltage, AC [V AC] | 500 |
| IP Rating | IP66 |
| Standards Compliance | AS/NZS 3112:2004, AS/NZS 3123:2005 |
Warranty starts from invoice date.
Warranty period: 0
Warranty method:
