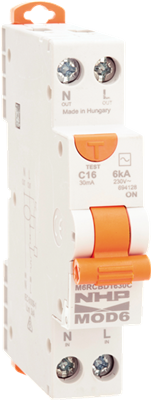

Tech Sheet 1RCBO MOD6 1P+N 6kA 32A C CURVE 30mA TYPE A S/NEUT COMPACT 2S
NHP M6RCBD3230CAN
RCBO 1P-D 6KA 30MA 32A MOD-C
$48.45 ex. GST.
RCBO 1P-D 6KA 30MA 32A MOD-C
| Height | Width |
|---|---|
| 86 mm | 18 mm |
Features
| Weight | 0.0000 kg |
|---|---|
| Trip Curve | C |
| RCD Type, AS/NZS 61008/61009 | A |
| IΔc, Rated Conditional Residual Short-Circuit Current [kA] | 6 |
| Tripping Time at IΔn, Instantaneous [ms] | <40 |
| In, Rated Current at 30°C [A @30°C] | 32 |
| IΔn, Rated Leakage Current [mA] | 30 |
| Neutral Pole Protected | No |
| Poles | 1P + N |
| Icn, Rated Short Circuit Capacity [kA] | 6 |
| Icn, Rated Short-Circuit Capacity, 1P, 230/400V AC [kA] | 6 |
| Un, Nominal Operational Voltage, AC [V AC] | 240 |
| Mounting | DIN-35 Rail Mount |
| Impulse Withstand Test Voltage [kV] | 6 |
| Ui, Rated Insulation Voltage @ Pollution Degree 2 [V] | 500 |
| Height [mm] | 86 |
| Width [mm] | 18 |
| Depth [mm] | 76 |
| Ubmin, Service Voltage, AC, Min [V AC] | 195 |
| Ubmax, Service Voltage, AC, Max [V AC] | 255 |
| Ui, Rated Insulation Voltage @ Pollution Degree 3 [V] | 440 |
| Selectivity Class (IEC 60898) | A |
| Im, Rated Make/Break Capacity [A] | 500 |
