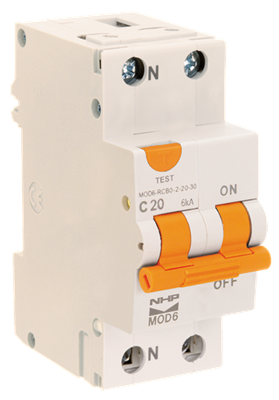

NHP MOD6RCBO22030A

RCBO 2P 6KA 30MA 20A A MOD6..

$84.60 ex. GST.

RCBO MOD6 1P+N 6kA 20A C CURVE 30mA TYPE A (2P WIDTH)

SKU: NHP MOD6RCBO22030A Category:
Height Width
86 mm 36 mm

Features

MOD6 RCBO, 2P, 6kA, 30mA, 20A, type A, no pigtail

Weight 0.0000 kg
Product Series

MOD6

Trip Curve

C

RCD Type, AS/NZS 61008/61009

A

IΔc, Rated Conditional Residual Short-Circuit Current [kA]

6

Tripping Time at IΔn, Instantaneous [ms]

<40

In, Rated Current at 30°C [A @30°C]

20

IΔn, Rated Leakage Current [mA]

30

Neutral Pole Protected

No

Poles

1P + N

Icn, Rated Short Circuit Capacity [kA]

6

Icn, Rated Short-Circuit Capacity, 1P, 230/400V AC [kA]

6

Un, Nominal Operational Voltage, AC [V AC]

240

Mounting

DIN-35 Rail Mount

Impulse Withstand Test Voltage [kV]

6

Ui, Rated Insulation Voltage @ Pollution Degree 2 [V]

500

Height [mm]

86

Width [mm]

36

Depth [mm]

76

Ubmin, Service Voltage, AC, Min [V AC]

176

Ubmax, Service Voltage, AC, Max [V AC]

255

Ui, Rated Insulation Voltage @ Pollution Degree 3 [V]

440

Selectivity Class (IEC 60898)

A

Warranty starts from invoice date.

Warranty period: 0

Warranty method:
