Tech Sheet 1MCB/RCD 1P 20A 30MA 10KA DIN-T
NHP DSRCBH2030A

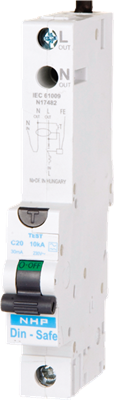

RCBO DIN-SAFE 10KA 1P+N 20A C CURVE 30MA TYPE A LONGBODY
$119.80 ex. GST.
RCBO DIN-SAFE 10KA 1P+N 20A C CURVE 30MA TYPE A LONGBODY
| Height | Width |
|---|---|
| 125 mm | 18 mm |
Features
- Free tripping mechanism even if toggle is locked or sealed ON or OFF
- DIN rail mounting
- High speed and rapid arc quenching technology ensuring the highest level of protection is provided
| Weight | 0.0000 kg |
|---|---|
| Trip Curve | C |
| RCD Type, AS/NZS 61008/61009 | A |
| IΔc, Rated Conditional Residual Short-Circuit Current [kA] | 10 |
| Tripping Time at IΔn, Instantaneous [ms] | <40 |
| In, Rated Current at 30°C [A @30°C] | 20 |
| IΔn, Rated Leakage Current [mA] | 30 |
| Neutral Pole Protected | No |
| Number of Poles versus Modules | 1 |
| Poles | 1P + N |
| Icn, Rated Short Circuit Capacity [kA] | 10 |
| Icn, Rated Short-Circuit Capacity, 1P, 230/400V AC [kA] | 10 |
| Un, Nominal Operational Voltage, AC [V AC] | 240 |
| Mounting | DIN-35 Rail Mount |
| Impulse Withstand Test Voltage [kV] | 6 |
| Height [mm] | 125 |
| Width [mm] | 18 |
| Depth [mm] | 76 |
| Ubmin, Service Voltage, AC, Min [V AC] | 195 |
| Ubmax, Service Voltage, AC, Max [V AC] | 265 |
| Selectivity Class (IEC 60898) | A |
| Im, Rated Make/Break Capacity [A] | 200 |
| Rated Frequency | 50 / 60 Hz |
