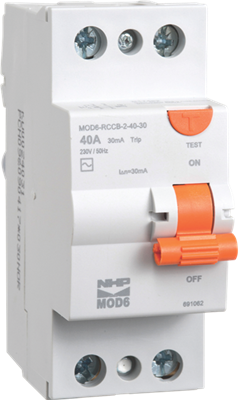

MOD6 RCCB, 2P, 6kA, 30mA, 40A, type A
NHP MOD6RCCB24030A
RCCB MOD6 1P+N 40A 30MA TYPE A
$106.69 ex. GST.
RCCB MOD6 1P+N 40A 30mA TYPE A
| Height | Width |
|---|---|
| 86 mm | 36 mm |
Features
| Weight | 0.0000 kg |
|---|---|
| Product Series | MOD6 |
| RCD Type, AS/NZS 61008/61009 | A |
| IΔc, Rated Conditional Residual Short-Circuit Current [kA] | 6 |
| Tripping Time at IΔn, Instantaneous [ms] | <40 |
| In, Rated Current at 30°C [A @30°C] | 40 |
| IΔn, Rated Leakage Current [mA] | 30 |
| Neutral Pole Protected | No |
| Number of Poles | 2 |
| Poles | 1P + N |
| Icn, Rated Short Circuit Capacity [kA] | 6 |
| Un, Nominal Operational Voltage, AC [V AC] | 240 |
| Mounting | DIN-35 Rail Mount |
| Impulse Withstand Test Voltage [kV] | 6 |
| Ui, Rated Insulation Voltage @ Pollution Degree 2 [V] | 500 |
| Height [mm] | 86 |
| Width [mm] | 36 |
| Depth [mm] | 76 |
| Ubmin, Service Voltage, AC, Min [V AC] | 176 |
| Ubmax, Service Voltage, AC, Max [V AC] | 265 |
| Selectivity Class (IEC 60898) | A |
| Im, Rated Make/Break Capacity [A] | 400 |
| Rated Frequency | 50 / 60 Hz |
