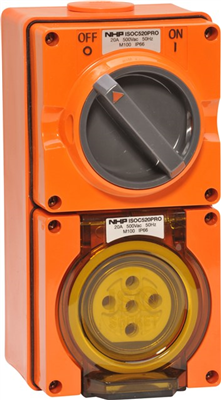

Tech Sheet 1Switched Socket 5 Pin 20A Resistant Orange
NHP ISOC520PRO
SWITCHED OUTLET 5 ROUND PINS 20A 500V AC RO 63MM BASE
$204.50 ex. GST.
SWITCHED OUTLET 5 ROUND PINS 20A 500V AC RO 63MM BASE
| Height | Width |
|---|---|
| mm | mm |
Features
- High ingress protection of IP66 across the range
- User friendly design with extruded ribbed grips, large switch handle and large socket latches for easy operation with or without gloves
- Suitable for most industrial and commercial applications
- Components available: Switched Socket outlets, Switches, Socket Outlets, Plugs, Extension Sockets, Appliance Inlets, RCD Protected Outlets, Back Boxes and large range of accessories
- Large range covering 10 to 50A in 3, 4 and 5 pin configurations
- Designed and tested to AS/NZS 3112 and AS/NZS 3123
| Weight | 0.0000 kg |
|---|---|
| Material, Body / Housing [material] | Polycarbonate & PET Blend |
| Colour, Body / Housing [colour] | Resistant Orange |
| In, Rated Current [A] | 20 |
| Chemical Resistant Body / Housing [body] | Yes |
| Details, Chemical Resistance | Consult NHP |
| Wire / Conductor Size (Min) [min] | 2.5 mm² |
| Wire / Conductor Size (Max) | 6 mm² |
| Matching Angled Plug | ISOPA520P |
| Matching Straight Plug | ISOPS520P |
| Pin Configuration | 5 round |
| Un, Nominal Operational Voltage, AC [V AC] | 500 |
| Switching Poles | 3P |
| IP Rating | IP66 |
| Standards Compliance | AS/NZS 3112:2004, AS/NZS 3123:2005 |
Warranty starts from invoice date.
Warranty period: 0
