Tech Sheet 12X1.5mm2 PVC Flat 450/750V Red White Cores with Red Sheath 500m
PIR 7/050RW/500M
1.5mm TWIN ACTIVE 500m DRUM.
$1.08 ex. GST. per metre

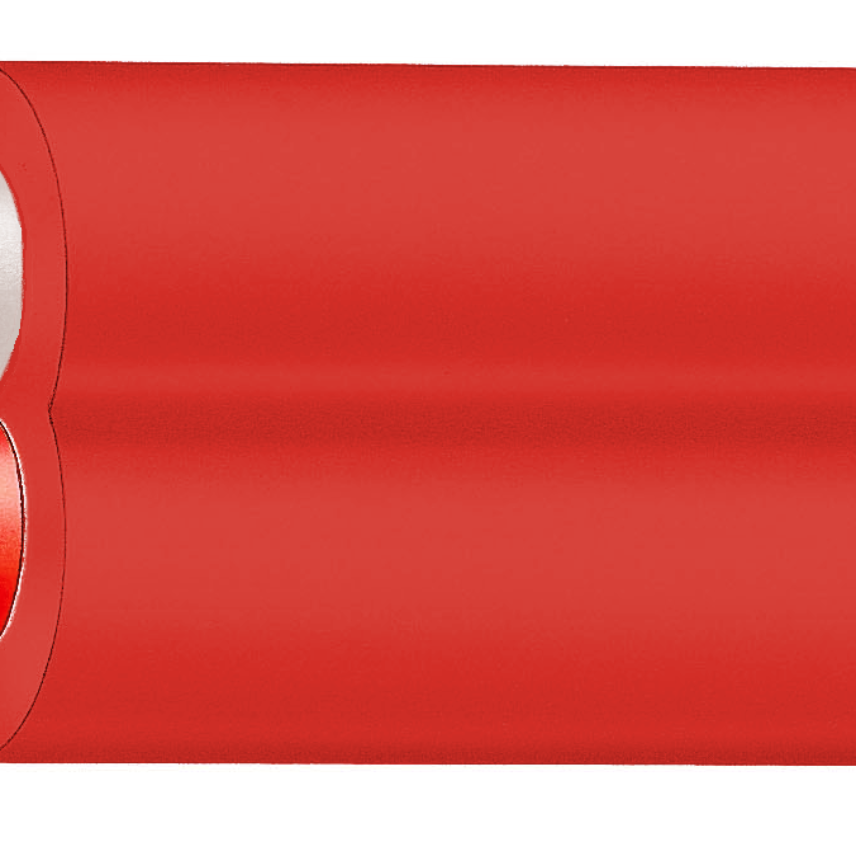

2X1.5mm2 PVC Flat 450/750V Red White Cores with Red Sheath 500m, 1.5 mm² Conductor cross-section, 7.2 x 4.5 Nominal overall diameter
Features
- 450/750V V-90 insulated
- Copper conductors, 90°C.
- PVC sheathed to AS/NZS 5000.2
- 2 & 3 core flat
| Weight | 0.0000 kg |
|---|---|
| Colour | Red / white / red |
| Conductor flexibility | Class 2 |
| Conductor material | Copper |
| Conductor shape | Circular |
| Insulation | V-90 |
| Outer sheath | PVC |
| Type of conductor | Stranded copper |
| With Green/Yellow core | No |
| With smaller neutral conductor | No |
| Approximate weight | 6.2 kg/100m |
| Cable length | 500 m |
| Conductor cross-section | 1.5 mm² |
| Nominal insulation thickness | 0.6 mm |
| Nominal outer sheath thickness | 0.9 mm |
| Nominal overall diameter | 7.2 x 4.5 |
| Number of cores | 2 |
| Conductor AC resistance at 50 Hz | 16.5 Ohm/km |
| Inductive reactance at 50Hz | 0.172 Ohm/km |
| Insulation resistance at 20°C | 14 MOhm.km |
| Max. DC resistance of the conductor at 20°C | 13.6 Ohm/km |
| Rated Voltage Uo/U (Um) | 450 / 750 V |
| Cable flexibility | Rigid |
