Tech Sheet 13X2.5mm2 (2C+E) Powerlex OD Orange
PIR 7/067-2EC
2.5mm 2C AND ECC O/CIRC..
$4.25 ex. GST. per metre

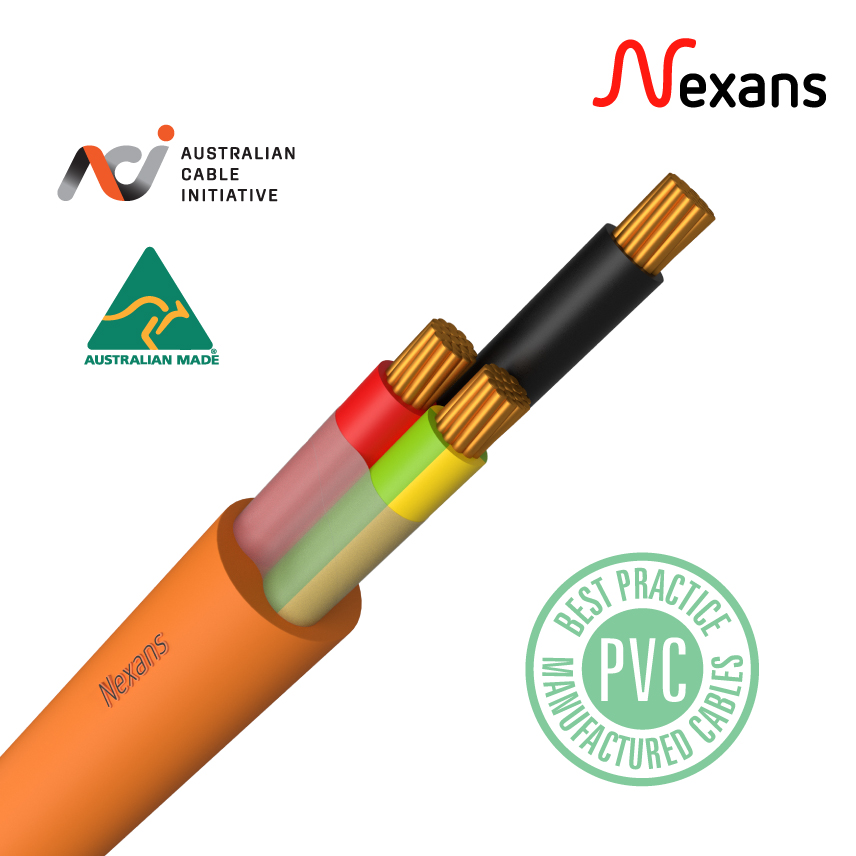

3X2.5mm2 (2C+E) Powerlex OD Orange, 2.5 mm² Conductor cross-section, 9.9 mm Nominal overall diameter
Features
- V-90 insulated and sheathed ordinary duty flexible cord to AS/NZS 3191 and AS/NZS 60227.
- 250/440V
| Weight | 0.0000 kg |
|---|---|
| Colour | Orange |
| Conductor flexibility | Class 5 |
| Conductor material | Copper |
| Conductor shape | Circular |
| Insulation | V-90 |

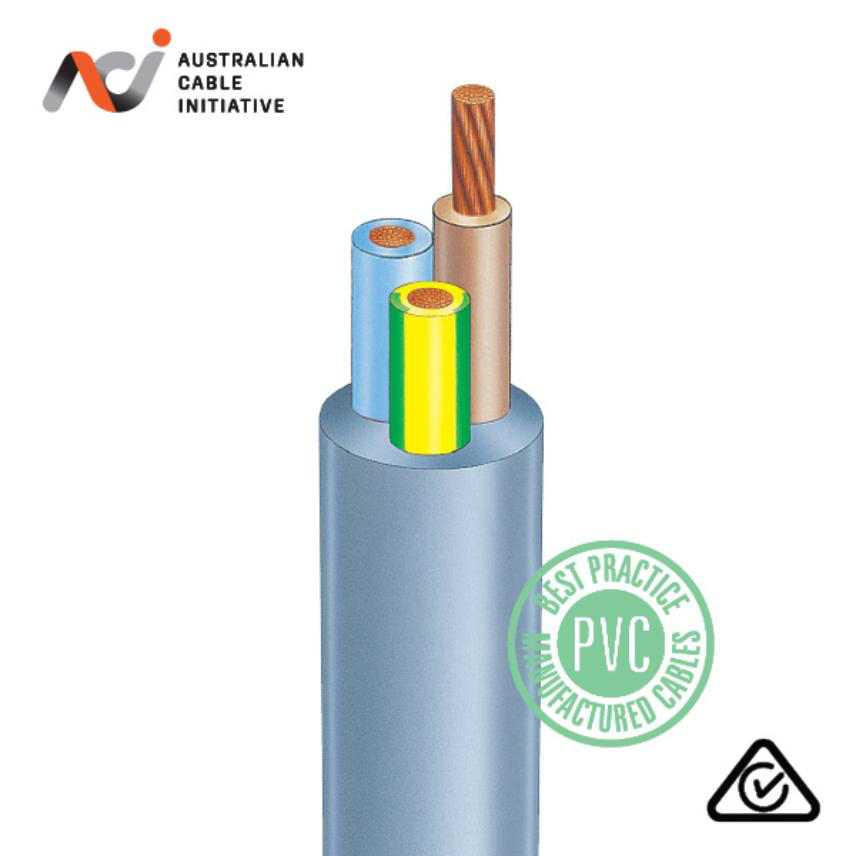

| Insulation colour | Brown, light blue, Green/yellow |
| Outer sheath | PVC |
| Type of conductor | Copper |
| With Green/Yellow core | Yes |
| Approximate weight | 17.0 kg/100m |
| Cable length | 100 m |
| Conductor cross-section | 2.5 mm² |
| Maximum diameter of wires | 0.21 mm |
| Nominal overall diameter | 9.9 mm |
| Number of cores | 3 |
| Number of earth cores | 1 |
| A.C. Conductor resist. 50Hz and at 90 °C | 9.7 Ohm/km |
| Inductive reactance at 50Hz | 0.101 Ohm/km |
| Insulation resistance at 20°C | 14 MOhm.km |
| Max. DC resistance of the conductor at 20°C | 7.98 Ohm/km |
| Rated Voltage Uo/U (Um) | 250/440 V |
| National | AS/NZS 3191; AS/NZS 60227 |
