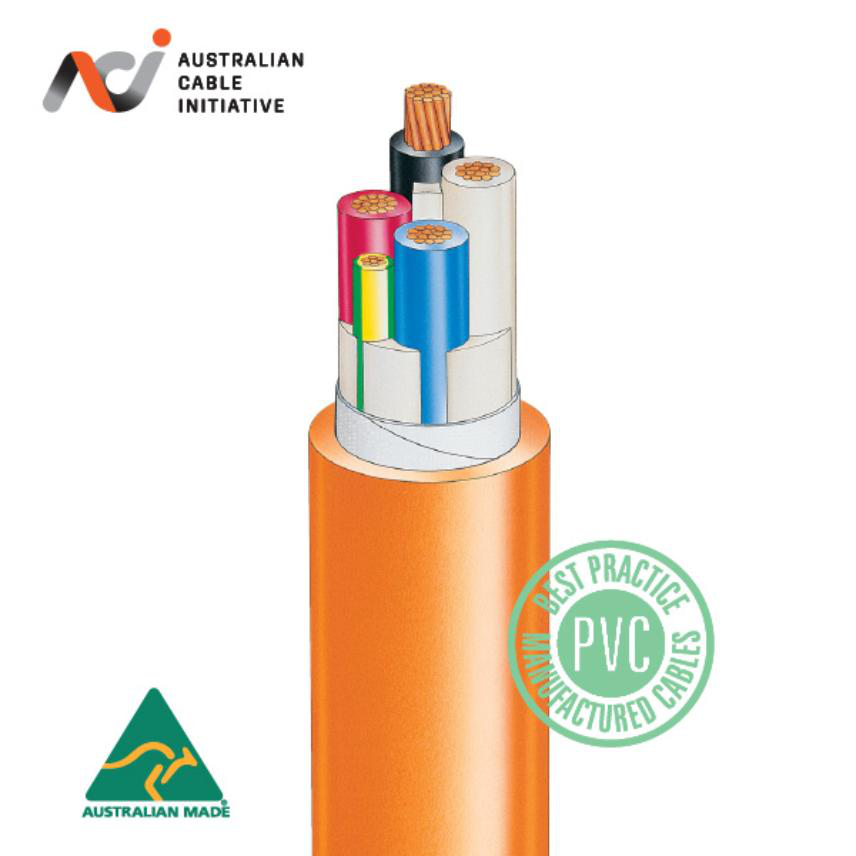

Tech Sheet 14X35mm2 + E PVC Circular Orange 0.6/1KV
PIR 35-4EC
35mm 4C AND ECC O/CIRC..
$66.94 ex. GST. per metre
35mm 4C&E O/C 0.6/1KV, 35 mm² Conductor cross-section, 27.2 mm Nominal overall diameter
Features
- HNHP 0.6/1kV to AS/NZS 5000.1
- PVC sheathed to AS/NZS 5000
- GNHP 450/750V to AS/NZS 5000.2
- 4 core+earth, circular
- Copper conductors.
- V-90 insulated
| Weight | 0.0000 kg |
|---|---|
| Colour | Orange |
| Conductor flexibility | Class 2 |
| Conductor material | Copper |
| Conductor shape | Circular |
| Insulation | V-90 |
| Outer sheath | PVC |
| Type of conductor | Compact copper |
| With Green/Yellow core | Yes |
| With smaller neutral conductor | No |
| Approximate weight | 180.0 kg/100m |
| Conductor cross-section | 35 mm² |
| Earth conductor cross section | 10 mm² |
| Nominal insulation thickness | 1.2 mm |
| Nominal outer sheath thickness | 1.8 mm |
| Nominal overall diameter | 27.2 mm |
| Number of cores | 5 |
| Number of earth cores | 1 |
| Conductor AC resistance at 50 Hz | 1.47 Ohm/km |
| Inductive reactance at 50Hz | 0.086 Ohm/km |
| Insulation resistance at 20°C | 7.3 MOhm.km |
| Max. DC resistance of the conductor at 20°C | 0.524 Ohm/km |
| Rated Voltage Uo/U (Um) | 0.6/1 kV |
