$18.12 ex. GST. per metre

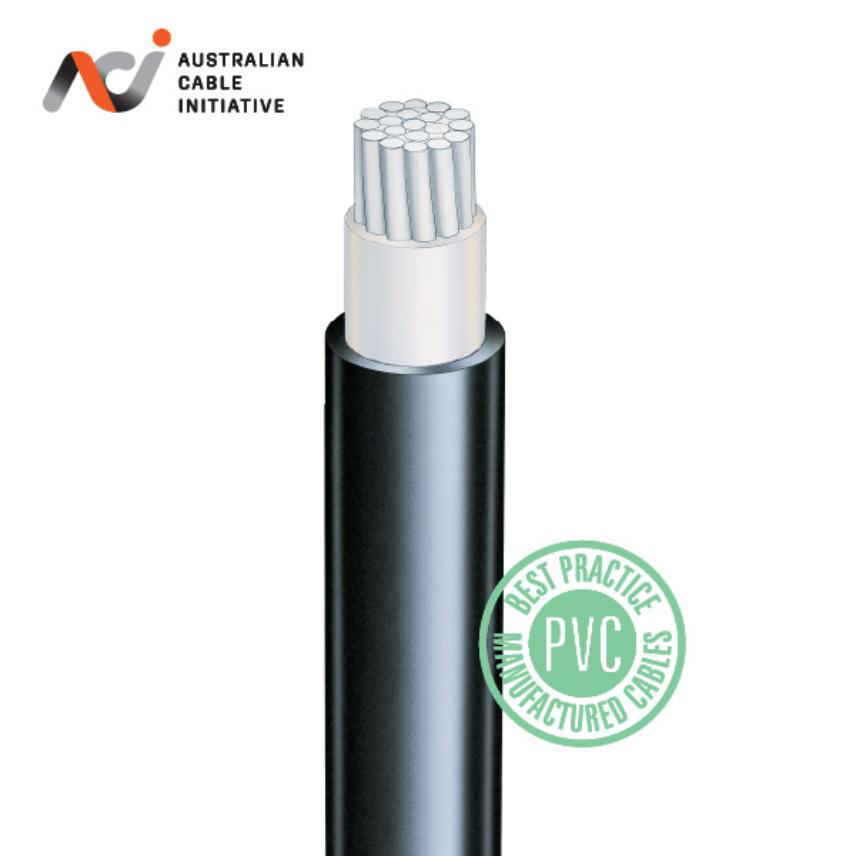

50mm2 Al XLPE / PVC SDI Black, 50 mm² Conductor cross-section, 13.1 mm Nominal overall diameter
Features
- PVC sheathed to AS/NZS 5000.1
- Single core, 0.6/1kV X-90 insulated
- Aluminium conductors, 90°C.
| Weight | 0.0000 kg |
|---|---|
| Colour | Black |
| Conductor flexibility | Class 2 |
| Conductor material | Aluminum |
| Conductor shape | Circular |
| Insulation | X-90 |
| Outer sheath | PVC |
| Type of conductor | Compact aluminium |
| With Green/Yellow core | No |
| With smaller neutral conductor | No |
| Approximate weight | 23.0 kg/100m |
| Conductor cross-section | 50 mm² |
| Nominal insulation thickness | 1.0 mm |
| Nominal outer sheath thickness | 1.4 mm |
| Nominal overall diameter | 13.1 mm |
| Number of cores | 1 |
| Conductor AC resistance at 50 Hz | 0.783 Ohm/km |
| Inductive reactance at 50Hz - flat touching | 0.108 Ohm/km |
| Inductive reactance at 50Hz - trefoil | 0.092 Ohm/km |
| Insulation resistance at 20°C | 300 MOhm.km |
| Max. DC resistance of the conductor at 20°C | 0.641 Ohm/km |
| Rated Voltage Uo/U (Um) | 0.6/1 kV |
| Cable flexibility | Rigid |
