PIR 95XLPE

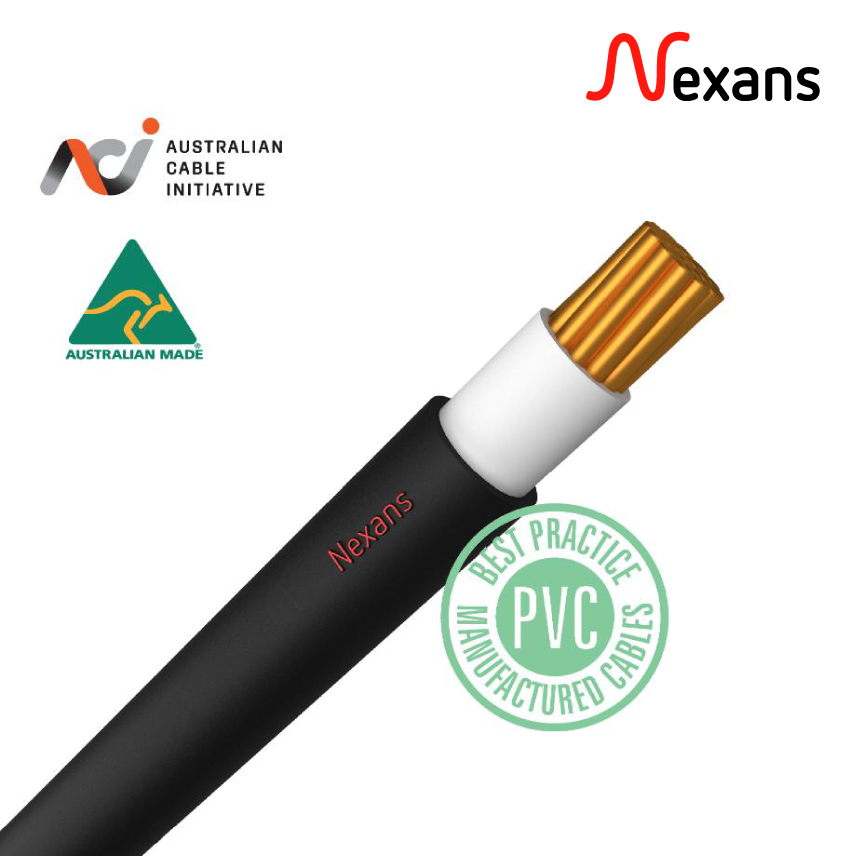

95mm XLPE COPPER..

$33.28 ex. GST. per metre

XLP 1X95 PC XLPPVC, 95 mm² Conductor cross-section, 17.2 mm Nominal overall diameter

SKU: PIR 95XLPE Category:

Features

  • Copper 90°C.
  • PVC sheathed to AS/NZS 5000.1
  • Single core, 0.6/1kV X-90 insulated

95mm2 XLPE / PVC SDI Black

Weight 0.0000 kg
Colour

Black

Conductor flexibility

Class 2

Conductor material

Copper

Conductor shape

Circular

Insulation

X-90

Outer sheath

PVC

Type of conductor

Compressed copper

With Green/Yellow core

No

With smaller neutral conductor

No

Approximate weight

101.0 kg/100m

Conductor cross-section

95 mm²

Nominal insulation thickness

1.1 mm

Nominal outer sheath thickness

1.5 mm

Nominal overall diameter

17.2 mm

Number of cores

1

Conductor AC resistance at 50 Hz

0.327 Ohm/km

Inductive reactance at 50Hz - flat touching

0.104 Ohm/km

Inductive reactance at 50Hz - trefoil

0.089 Ohm/km

Insulation resistance at 20°C

220 MOhm.km

Max. DC resistance of the conductor at 20°C

0.193 Ohm/km

Rated Voltage Uo/U (Um)

0.6/1 kV

Cable flexibility

Rigid

Warranty starts from invoice date.

Warranty period: 0

Warranty method:
