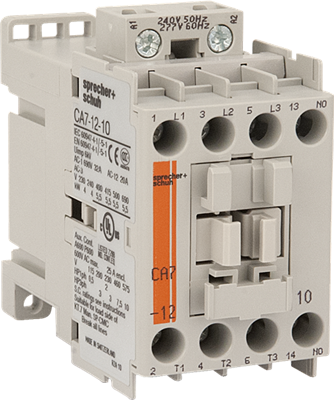

NHP CA71210240VAC

CONTACTOR 3P 5.5KW 240V AC COIL 1N/O AUXILIARY

$179.90 ex. GST.

CONTACTOR 3P 5.5KW 240V AC COIL 1N/O AUXILIARY

SKU: NHP CA71210240VAC Category:
Height Width
mm mm

Features

  • Compact dimensions saves panel space
  • Several contactor families provide a wide variety of contactor sizes, offering economy and selection

Contactor 3 pole 12A 5.5kW 1N/O Auxiliary 240V AC Coil

Weight 0.0000 kg
Ie, Rated Operational Current, AC-1, 415V, 40°C [A@415V,40°C]

32

kW Rating, AC-3, 415V, 60°C [kW @415V, 60°C]

5.5

Ie, Rated Operational Current, AC-3, 415V, 60°C [A@415V,60°C]

12

kW Rating, AC-3, 690V, 60°C [kW @690V, 60°C]

5.5

Ie, Rated Operational Current, AC-3, 690V, 60°C [A@690V,60°C]

7

Number of Poles

3

Contact Configuration, Main Poles [main poles]

3 NO

Contact Configuration, Auxiliary [auxiliary]

1 NO

Coil Type [type]

Conventional

Coil Consumption Hold-in VA AC coiled contactors [VA]

2.7;9.5

Coil Consumption Pickup VA AC coiled contactors [VA]

75

Integrated Aux

1 N/O

Coil Voltage [V]

240 V AC

Un, Coil Voltage, AC @50Hz, Nom [V AC nom @50Hz]

240

Un, Coil Voltage, AC @50Hz, Min [V AC min @50Hz]

204

Un, Coil Voltage, AC @50Hz, Max [V AC max @50Hz]

264

Un, Coil Voltage, AC @60Hz, Nom [V AC nom @60Hz]

277

Un, Coil Voltage, AC @60Hz, Min [V AC min @60Hz]

235

Un, Coil Voltage, AC @60Hz, Max [V AC max @60Hz]

304

Tightening Torque, Power Terminals, max [Nm max]

2

IP Rating

IP20

Warranty starts from invoice date.

Warranty period: 0

Warranty method:
