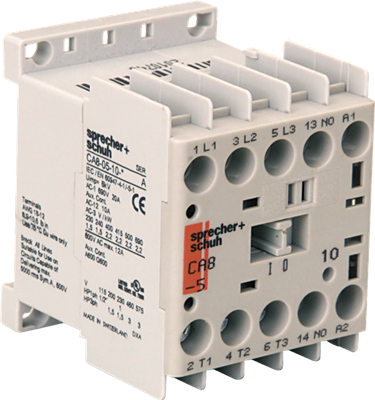

Mini Contactor 3 pole 9A 4kW 1N/O Auxiliary 240V AC Coil
NHP CA8910240VAC
CONTACTOR MINI 3P 4KW 1N/O AUXILIARY 240V AC COIL
$141.40 ex. GST.
CONTACTOR MINI 4kW 3P 240V AC COIL 1NO AUXILIARY
| Height | Width |
|---|---|
| mm | mm |
Features
- Compact dimensions saves panel space
- Several contactor families provide a wide variety of contactor sizes, offering economy and selection
| Weight | 0.0000 kg |
|---|---|
| Product Series | CA8 |
| Ie, Rated Operational Current, AC-1, 415V, 40°C [A@415V,40°C] | 20 |
| kW Rating, AC-3, 415V, 60°C [kW @415V, 60°C] | 4 |
| Ie, Rated Operational Current, AC-3, 415V, 60°C [A@415V,60°C] | 8.5 |
| kW Rating, AC-3, 690V, 60°C [kW @690V, 60°C] | 4 |
| Ie, Rated Operational Current, AC-3, 690V, 60°C [A@690V,60°C] | 4.9 |
| Number of Poles | 3 |
| Contact Configuration, Main Poles [main poles] | 3 NO |
| Contact Configuration, Auxiliary [auxiliary] | 1 NO |
| Coil Type [type] | Conventional |
| Coil Voltage [V] | 240 V AC |
| IΔc, Rated Conditional Residual Short-Circuit Current [A] | 6000 |
| IP Rating | IP20 |
Warranty starts from invoice date.
Warranty period: 0
Warranty method:
