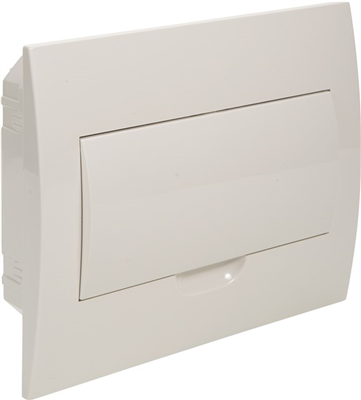

NHP CSB18FW

LOADCENTRE 18 WAY DIN FLUSH WHITE DOOR

$142.50 ex. GST.

LOADCENTRE 18 WAY DIN FLUSH WHITE DOOR

SKU: NHP CSB18FW Category:
Height Width
267 mm 412 mm

Features

  • Surface mount or flush mount
  • AS/NZS 3439.3
  • MOD6 range of pole covers and loadcentres to suit MOD6 MCBs, RCDs and RCBOs
  • Insulated enclosure
  • Pole covers up to 4 poles and loadcentre up to 36 poles

CSB flush mount loadcentre, 18way, white door

Weight 0.0000 kg
Product Series

CSB

MCB Type

DIN Profile

Material, Body / Housing [material]

ABS

Colour, Body / Housing [colour]

White

Material, door

White-ABS, Clear PC ( PolyCarbonate)

Colour, Door [door]

White

Ue, rated operational voltage, AC, 3ph, nom [V AC]

415

Ue, rated operational voltage, AC, 1ph, nom [V AC]

240

In, Rated Current [A]

100

In, rated current, busbar comb, centre feed [A]

130

In, rated current, busbar comb, end feed [A]

80

Number of Poles

18

Main Switch Type [Main Switch]

Circuit Breaker

Tunnels, neutral bar

9/3/3/3

Tunnels, earth bar

18

Mounting

Flush Mount

Height [mm]

267

Width [mm]

412

Depth [mm]

105

Height, base [mm]

232

Width, base [mm]

380

Depth, Base [mm]

76

Warranty starts from invoice date.

Warranty period: 0

Warranty method:
