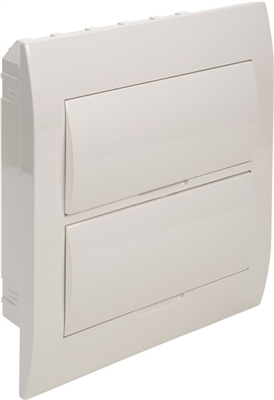

CSB flush mount loadcentre, 24way, white door
NHP CSB24FW
LOADCENTRE 24 WAY DIN FLUSH WHITE DOOR
$231.00 ex. GST.
LOADCENTRE 24 WAY DIN FLUSH WHITE DOOR
| Height | Width |
|---|---|
| 358 mm | 305 mm |
Features
- MOD6 range of pole covers and loadcentres to suit MOD6 MCBs, RCDs and RCBOs
- AS/NZS 3439.3
- Insulated enclosure
- Surface mount or flush mount
- Pole covers up to 4 poles and loadcentre up to 36 poles
| Weight | 0.0000 kg |
|---|---|
| Product Series | CSB |
| MCB Type | DIN Profile |
| Material, Body / Housing [material] | ABS |
| Colour, Body / Housing [colour] | White |
| Material, door | White-ABS, Clear PC ( PolyCarbonate) |
| Colour, Door [door] | White |
| Ue, rated operational voltage, AC, 3ph, nom [V AC] | 415 |
| Ue, rated operational voltage, AC, 1ph, nom [V AC] | 240 |
| In, Rated Current [A] | 100 |
| In, rated current, busbar comb, centre feed [A] | 130 |
| In, rated current, busbar comb, end feed [A] | 80 |
| Number of Poles | 24 |
| Main Switch Type [Main Switch] | Circuit Breaker |
| Tunnels, neutral bar | 10/3/3/3/3 |
| Tunnels, earth bar | 24 |
| Mounting | Flush Mount |
| Height [mm] | 358 |
| Width [mm] | 305 |
| Depth [mm] | 105 |
| Height, base [mm] | 304 |
| Width, base [mm] | 270 |
| Depth, Base [mm] | 76 |
Warranty starts from invoice date.
Warranty period: 0
Warranty method:
