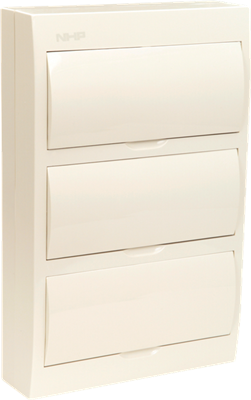

Tech Sheet 1CSB surface mount loadcentre, 36way, white door
NHP CSB36SW
LOADCENTRE 36 WAY DIN SURFACE WHITE DOOR
$266.25 ex. GST.
LOADCENTRE 36 WAY DIN SURFACE WHITE DOOR
| Height | Width |
|---|---|
| 473 mm | 306 mm |
Features
- Surface mount or flush mount
- Insulated enclosure
- Pole covers up to 4 poles and loadcentre up to 36 poles
- AS/NZS 3439.3
- MOD6 range of pole covers and loadcentres to suit MOD6 MCBs, RCDs and RCBOs
| Weight | 0.0000 kg |
|---|---|
| MCB Type | DIN Profile |
| Material, Body / Housing [material] | ABS |
| Colour, Body / Housing [colour] | White |
| Material, door | White-ABS, Clear PC ( PolyCarbonate) |
| Colour, Door [door] | White |
| Ue, rated operational voltage, AC, 3ph, nom [V AC] | 415 |
| Ue, rated operational voltage, AC, 1ph, nom [V AC] | 240 |
| In, Rated Current [A] | 100 |
| In, rated current, busbar comb, centre feed [A] | 130 |
| In, rated current, busbar comb, end feed [A] | 80 |
| Number of Poles | 36 |
| Tunnels, neutral bar | 12/12/12 |
| Tunnels, earth bar | 36 |
| Mounting | Surface Mount |
| Height [mm] | 473 |
| Width [mm] | 306 |
| Depth [mm] | 102 |
| Earth and Neutral bar Rating | 100 A 16 mm tunnel terminals |
| IP Rating | IP40 |
| Standards Compliance | AS/NZS 3439.3 |
Warranty starts from invoice date.
Warranty period: 0
Warranty method:
