| Weight | 0.0000 kg |
|---|---|
| Country of Origin | CN |
| Rated current | 20 A |
| Rated insulation voltage Ui | 500 V |
| Voltage type | AC |
| Rated impulse withstand voltage Uimp | 4000 V |
| Ambient temperature during operating | -25…70 °C |
| Suitable for flush-mounted installation | 1 |
| Over voltage category | 3 |
| Frequency | 50 to 60 Hz |
| Release characteristic | C |
| Number of protected poles | 3 |
| Connectable conductor cross section multi-wired | 1 / 25 mm² |
| Number of poles (total) | 3 P |
| Built-in depth | 70 mm |
| Connectable conductor cross section solid-core | 1 / 35 mm² |
| Rated voltage | 415 V |
| Pollution degree | 2 |
| Width in number of modular spacings | 3 |
| Current limiting class | 3 |
| Degree of protection (IP) | IP20 |
| Additional equipment possible | 1 |

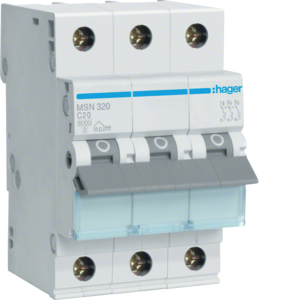

HAG MSN320
MCB 3P 6KA C-20A 3M
$44.00 ex. GST.
MCB 3P 6kA C-20A 3M
Features
Warranty starts from invoice date.
Warranty period: 0
