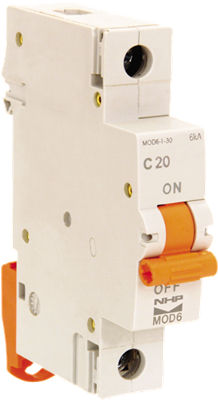

Tech Sheet 1MOD6 MCB, 6kA, 1P, 16A, C curve
NHP MOD6116
MCB MOD6 6KA 1P 16A C CURVE
$6.80 ex. GST.
MCB MOD6 6KA 1P 16A C CURVE
| Height | Width |
|---|---|
| 86 mm | 18 mm |
Features
- Fast connection pin/fork busbar comb or busbar chassis
- For general purpose light and power applications
- Free tripping mechanism even if toggle is locked or sealed ON or OFF
- Approval No. N17481 or RCM
- Complies with AS/NZS 60898
- Pad lockable and sealable toggle restricts unauthorized action
- Suits pole covers, loadcentres and Concept One Panelboards
- MOD6 MCBs feature 6kA short circuit rating
- C curve tripping characteristic
| Weight | 0.0000 kg |
|---|---|
| Trip Curve | C |
| In, Rated Current at 30°C [A @30°C] | 16 |
| Un, Nominal Operational Voltage(s), AC [V AC] | 240 |
| Ics, Rated Service Short-Circuit Breaking Capacity, AC (IEC 60898) [% Icn] | 100 |
| Ics, Rated Service Short-Circuit Breaking Capacity, AC (IEC 60947) [% Icu] | 100 |
| Neutral Pole Protected | No |
| Number of Poles | 1 |
| Poles | 1P |
| Icn, Rated Short-Circuit Capacity, 1P, 230/400V AC [kA] | 6 |
| Un, Nominal Operational Voltage, AC [V AC] | 240 |
| Mounting | DIN-35 Rail Mount |
| Impulse Withstand Test Voltage [kV] | 6 |
| Ui, Rated Insulation Voltage @ Pollution Degree 2 [V] | 500 |
| Height [mm] | 86 |
| Un, Nominal Operational Voltage, DC [V DC] | 48 |
| Width [mm] | 18 |
| Depth [mm] | 76 |
| Ubmin, Service Voltage, AC, Min [V AC] | 12 |
| Utilisation Category | A |
| Ubmax, Service Voltage, AC, Max [V AC] | 250 |
| Ui, Rated Insulation Voltage @ Pollution Degree 3 [V] | 440 |
| Ubmax, Service Voltage, DC, Max [V DC] | 53 |
