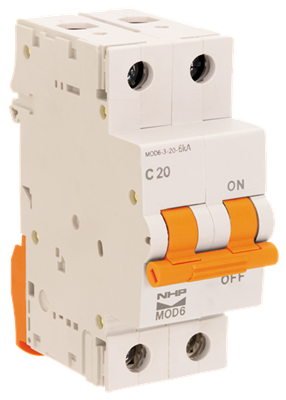

NHP MOD6220

MCB MOD6 6KA 2P 20A C CURVE

$42.77 ex. GST.

MCB MOD6 6KA 2P 20A C CURVE

SKU: NHP MOD6220 Category:
Height Width
86 mm 36 mm

Features

  • MOD6 MCBs feature 6kA short circuit rating
  • C curve tripping characteristic
  • Pad lockable and sealable toggle restricts unauthorized action
  • Suits pole covers, loadcentres and Concept One Panelboards
  • Complies with AS/NZS 60898
  • Fast connection pin/fork busbar comb or busbar chassis
  • For general purpose light and power applications
  • Free tripping mechanism even if toggle is locked or sealed ON or OFF
  • Approval No. N17481 or RCM

MOD6 MCB, 6kA, 2P, 20A, C curve

Weight 0.0000 kg
Trip Curve

C

In, Rated Current at 30°C [A @30°C]

20

Un, Nominal Operational Voltage(s), AC [V AC]

415

Ics, Rated Service Short-Circuit Breaking Capacity, AC (IEC 60898) [% Icn]

100

Ics, Rated Service Short-Circuit Breaking Capacity, AC (IEC 60947) [% Icu]

100

Neutral Pole Protected

Yes

Number of Poles

2

Poles

2P

Un, Nominal Operational Voltage, AC [V AC]

415

Mounting

DIN-35 Rail Mount

Impulse Withstand Test Voltage [kV]

6

Ui, Rated Insulation Voltage @ Pollution Degree 2 [V]

500

Height [mm]

86

Un, Nominal Operational Voltage, DC [V DC]

110

Width [mm]

36

Depth [mm]

76

Ubmin, Service Voltage, AC, Min [V AC]

12

Utilisation Category

A

Ubmax, Service Voltage, AC, Max [V AC]

440

Ui, Rated Insulation Voltage @ Pollution Degree 3 [V]

440

Ubmax, Service Voltage, DC, Max [V DC]

120

Rated Frequency

50 / 60 Hz
