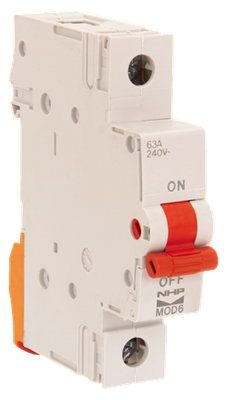

MOD6 main switch, DIN rail, 1P, 100A
NHP MOD6MS1100
MOD6 MAIN SWITCH 1P 100A
$19.65 ex. GST.
MOD6 MAIN SWITCH 1P 100A
| Height | Width |
|---|---|
| mm | 18 mm |
Features
| Weight | 0.0000 kg |
|---|---|
| Product Series | MOD6 |
| In, Rated Current [A] | 100 |
| Poles | 1P |
| Wire / Conductor Size (Min) [min] | 6 mm² |
| Wire / Conductor Size (Max) | 50 mm² |
| Width [mm] | 18 |
| Wire / Conductor Size, Rigid Cable, Top, Max [Top] | 50 mm² |
| Wire / Conductor Size, Rigid Cable, In, Min [In] | 6 mm² |
| Wire / Conductor Size, Rigid Cable, Out, Min [Out] | 6 mm² |
| Wire / Conductor Size, Rigid Cable, Bottom, Max [Bottom] | 50 mm² |
| Ie, Rated Operational Current, nom [A,nom] | 100 |
| Operating Temperature, Min [°C min] | -5 |
| Operating Temperature, Max [°C max] | 40 |
| Storage Temperature, Min [°C min] | -25 |
| Storage Temperature, Max [°C max] | 70 |
Warranty starts from invoice date.
Warranty period: 0
Warranty method:
