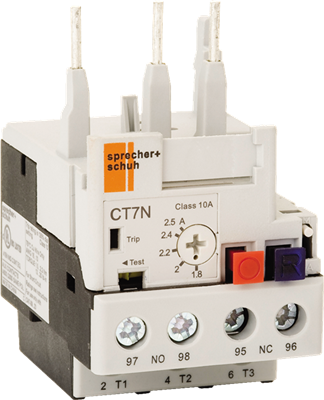

Tech Sheet 1Thermal Overload Relay, 2.3…3.2A, for use with CA7-9…23, Trip Class 10A, Auto/Manual Reset
NHP CT7N23B32
OVERLOAD THERMAL 2.3-3.2A FOR CA7-9/23
$184.10 ex. GST.
OVERLOAD THERMAL 2.3-3.2A FOR CA7-9/23
| Height | Width |
|---|---|
| mm | mm |
Features
- Choice of overload type to suit your application requirements
- Compact dimensions saves panel space
| Weight | 0.0000 kg |
|---|---|
| Adjustment | 1.5 : 1 |
| Current Range (A) | 2.3…3.2 |
| Details, Contactor | CA7-9…23 |
| Trip Class | 10A |
| Reset | Automatic / Manual |
| Contact Configuration | 1 NO + 1 NC EB 1st Contact |
| Test Function | Yes |
| Visible Trip Indicator | Yes |
| Motor FLC, Max [A, max] | 3.2 |
| Motor FLC, Min [A, min] | 2.3 |
| Rated Operation Voltage | 690 V AC |
