PIR 7/067-2E

2.5mm 2C AND ECC TPS..

$1.82 ex. GST. per metre

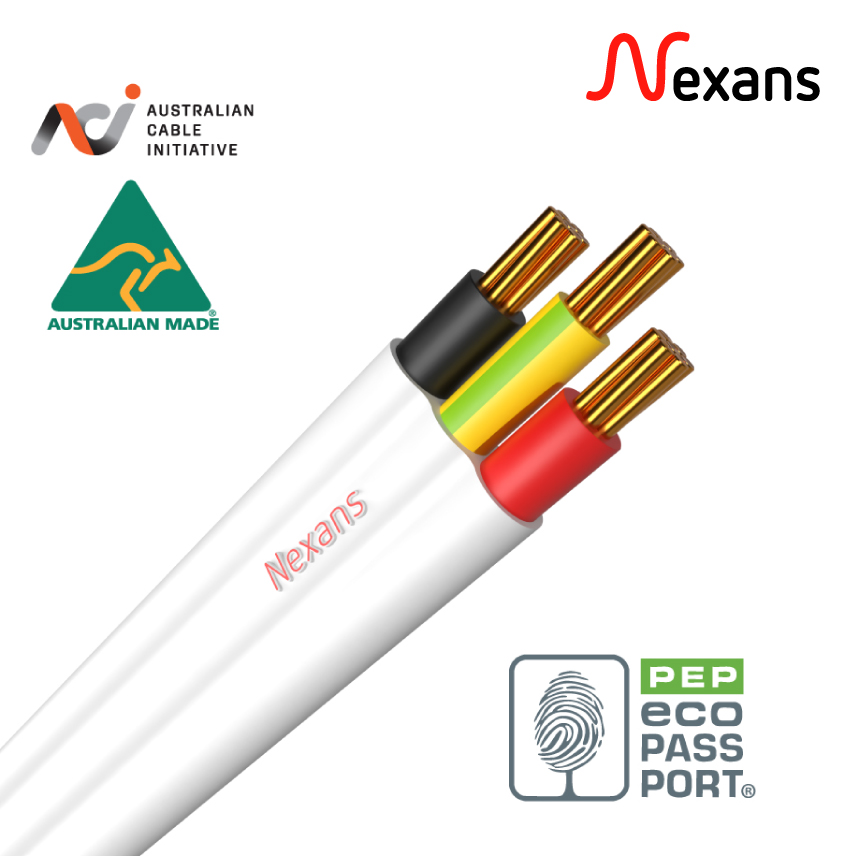

2.5mm 2C&E Flat White 100m, 2.5 mm² Conductor cross-section, 12.2 x 5.4 Nominal overall diameter

SKU: PIR 7/067-2E Category:

Features

  • PVC sheathed to AS/NZS 5000.2
  • 2 & 3 core+earth flat
  • 450/750V V-90 insulated
  • Copper conductors.

2X2.5mm2 + E PVC Flat Red Black Cores with White Sheath

Weight 0.0000 kg
Colour

White / Black / Red

Conductor flexibility

Class 2

Conductor material

Copper

Conductor shape

Circular

Insulation

V-90

Outer sheath

PVC

Type of conductor

Stranded copper

With Green/Yellow core

Yes

With smaller neutral conductor

No

Approximate weight

14.03 kg/100m

Cable length

100 m

Conductor cross-section

2.5 mm²

Earth conductor cross section

2.5 mm²

Nominal insulation thickness

0.7 mm

Nominal outer sheath thickness

1.0 mm

Nominal overall diameter

12.2 x 5.4

Number of cores

2

Number of earth cores

1

Conductor AC resistance at 50 Hz

9.01 Ohm/km

Inductive reactance at 50Hz

0.159 Ohm/km

Insulation resistance at 20°C

12 MOhm.km

Max. DC resistance of the conductor at 20°C

7.41 Ohm/km
