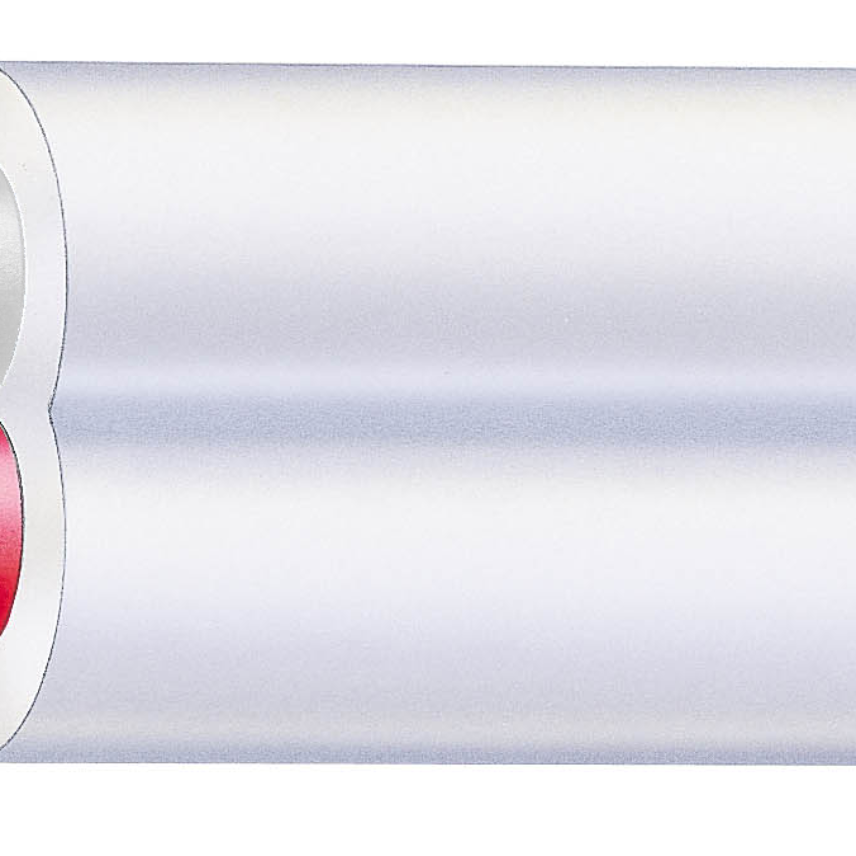

Tech Sheet 12X4mm2 PVC Flat 450/750V Red White Cores with White Sheath 100m
PIR 4.0RW
4mm TWIN ACTIVE..
$4.51 ex. GST. per metre

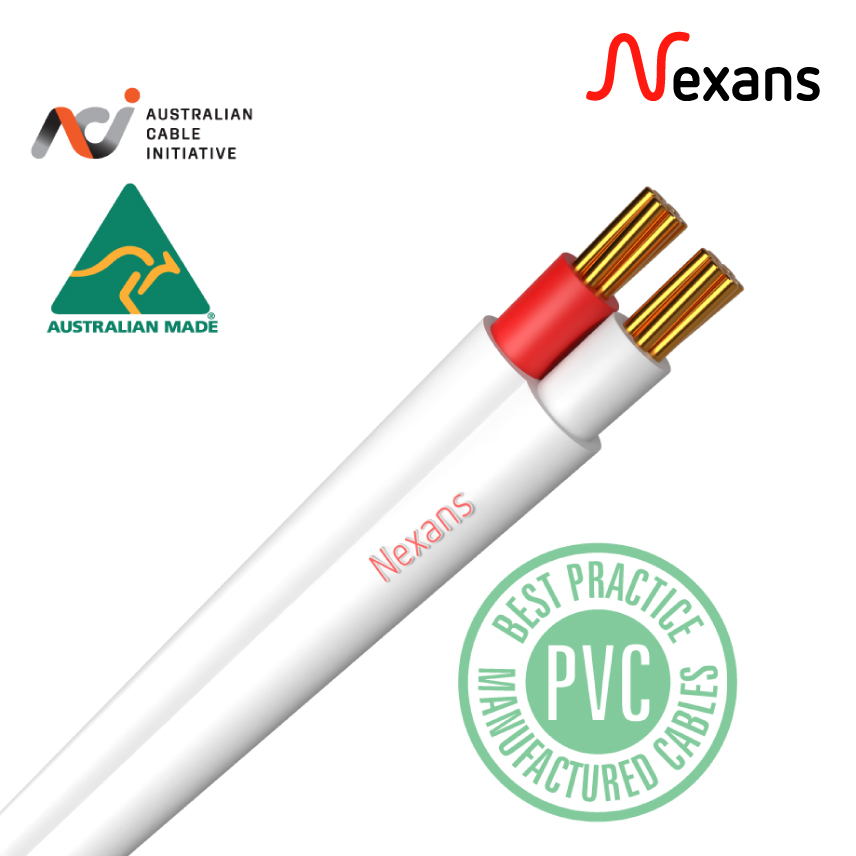

2X4mm2 PVC Flat 450/750V Red White Cores with White Sheath 100m, 4 mm² Conductor cross-section, 10.5 x 6.3 Nominal overall diameter
Features
- 450/750V V-90 insulated
- Copper conductors, 90°C.
- 2 & 3 core flat
- PVC sheathed to AS/NZS 5000.2
| Weight | 0.0000 kg |
|---|---|
| Colour | White / white / red |
| Conductor flexibility | Class 2 |
| Conductor material | Copper |
| Conductor shape | Circular |
| Insulation | V-90 |
| Outer sheath | PVC |
| Type of conductor | Stranded copper |
| With Green/Yellow core | No |
| With smaller neutral conductor | No |
| Approximate weight | 14.0 kg/100m |
| Cable length | 100 m |
| Conductor cross-section | 4 mm² |
| Nominal insulation thickness | 0.8 mm |
| Nominal outer sheath thickness | 1.1 mm |
| Nominal overall diameter | 10.5 x 6.3 |
| Number of cores | 2 |
| Conductor AC resistance at 50 Hz | 5.61 Ohm/km |
| Inductive reactance at 50Hz | 0.152 Ohm/km |
| Insulation resistance at 20°C | 12 MOhm.km |
| Max. DC resistance of the conductor at 20°C | 4.61 Ohm/km |
| Rated Voltage Uo/U (Um) | 450 / 750 V |
| Cable flexibility | Rigid |
Warranty starts from invoice date.
Warranty period: 0
Warranty method:
