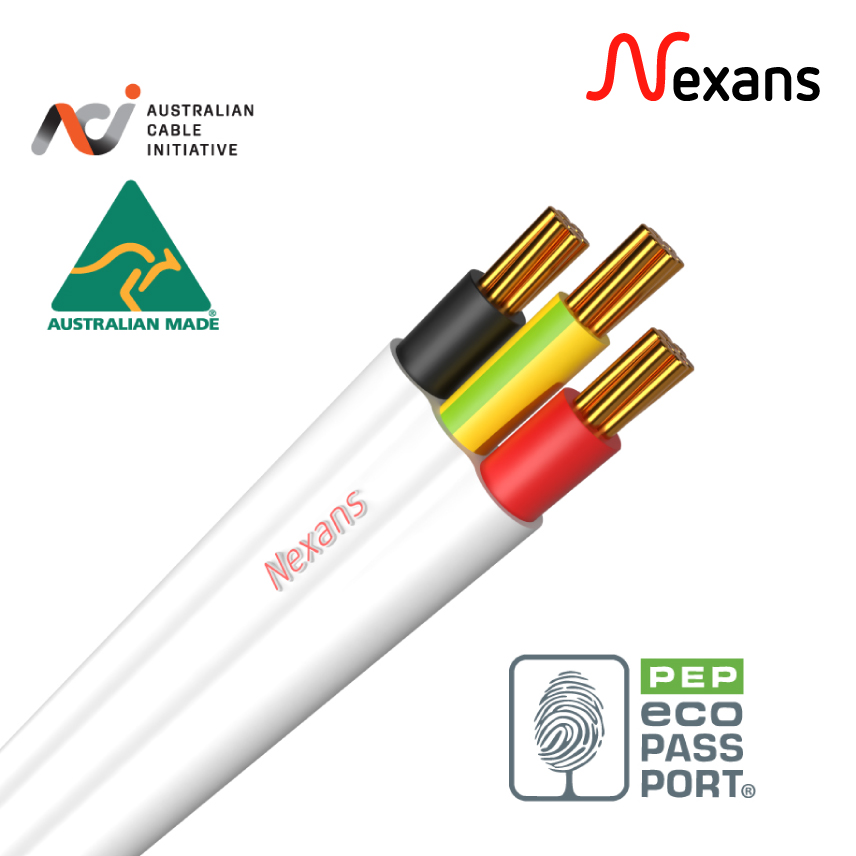

Tech Sheet 12X6mm2 + E PVC Flat Red Black Cores with White Sheath
PIR 6.0-2E
6mm 2C AND ECC TPS..
$4.29 ex. GST. per metre
6mm 2C&E Flat White 100m, 6 mm² Conductor cross-section, 15.0 x 6.9 Nominal overall diameter
Features
- PVC sheathed to AS/NZS 5000.2
- Copper conductors.
- 2 & 3 core+earth flat
- 450/750V V-90 insulated
| Weight | 0.0000 kg |
|---|---|
| Colour | White / Black / Red |
| Conductor flexibility | Class 2 |
| Conductor material | Copper |
| Conductor shape | Circular |
| Insulation | V-90 |
| Outer sheath | PVC |
| Type of conductor | Stranded copper |
| With Green/Yellow core | Yes |
| With smaller neutral conductor | No |
| Approximate weight | 23.04 kg/100m |
| Cable length | 100 m |
| Conductor cross-section | 6 mm² |
| Earth conductor cross section | 2.5 mm² |
| Nominal insulation thickness | 0.8 mm |
| Nominal outer sheath thickness | 1.1 mm |
| Nominal overall diameter | 15.0 x 6.9 |
| Number of cores | 2 |
| Number of earth cores | 1 |
| Conductor AC resistance at 50 Hz | 3.75 Ohm/km |
| Inductive reactance at 50Hz | 0.143 Ohm/km |
| Insulation resistance at 20°C | 9.9 MOhm.km |
| Max. DC resistance of the conductor at 20°C | 3.08 Ohm/km |
