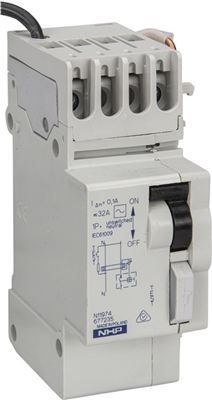

RCD CLIP ON 32A 30MA 1PN
NHP DSRCM32301PN
RCD DIN-SAFE CLIP ON 1P+N 32A 30MA TYPE AC
$363.00 ex. GST.
RCD DIN-SAFE CLIP ON 1P+N 32A 30mA TYPE AC
| Height | Width |
|---|---|
| 86 mm | 36 mm |
Features
- High speed and rapid arc quenching technology ensuring the highest level of protection is provided
- DIN rail mounting
- Free tripping mechanism even if toggle is locked or sealed ON or OFF
| Weight | 0.0000 kg |
|---|---|
| RCD Type, AS/NZS 61008/61009 | AC |
| Tripping Time at IΔn, Instantaneous [ms] | <40 |
| In, Rated Current at 30°C [A @30°C] | 32 |
| IΔn, Rated Leakage Current [mA] | 30 |
| Number of Poles versus Modules | 2 |
| Poles | 1P + N |
| Un, Nominal Operational Voltage, AC [V AC] | 240 |
| Mounting | DIN-35 Rail Mount |
| Height [mm] | 86 |
| Width [mm] | 36 |
| Depth [mm] | 76 |
| Ubmin, Service Voltage, AC, Min [V AC] | 176 |
| Ubmax, Service Voltage, AC, Max [V AC] | 265 |
| Rated Frequency | 50 / 60 Hz |
| Uimp, Impulse Withstand Voltage, 1.2/50µs [kV, 1.2/50µs] | 6 |
| Grid Distance (Safety Difference Between 2 Devices) [mm] | 35 |
| Ui, Rated Insulation Voltage [V (rms)] | 500 |
| Insulation Resistance [MΩ] | 1000 |
| Dielectric Strength [V AC] | 2500V |
| Electrical Service Life at Un, In [cycles] | 10000 |
| Mechanical Service Life [cycles] | 20000 |
| IP Rating, Inside | IP40 |
