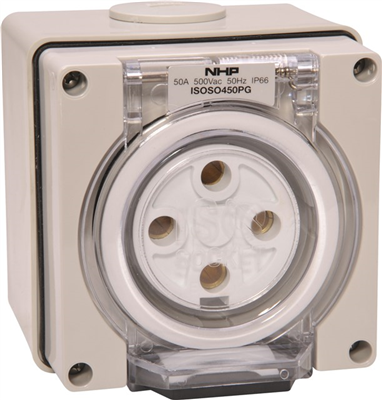

NHP ISOSO450PG

SOCKET OUTLET 4 ROUND PINS 50A 500V AC GREY 63MM BASE

$397.20 ex. GST.

SOCKET OUTLET 4 ROUND PINS 50A 500V AC GREY 63mm BASE

SKU: NHP ISOSO450PG Category:
Height Width
mm mm

Features

  • High ingress protection of IP66 across the range
  • Large range covering 10 to 50A in 3, 4 and 5 pin configurations
  • Designed and tested to AS/NZS 3112 and AS/NZS 3123
  • User friendly design with extruded ribbed grips, large switch handle and large socket latches for easy operation with or without gloves
  • Components available: Switched Socket outlets, Switches, Socket Outlets, Plugs, Extension Sockets, Appliance Inlets, RCD Protected Outlets, Back Boxes and large range of accessories
  • Suitable for most industrial and commercial applications

Socket Outlet 4 Pin 50A Grey

Weight 0.0000 kg
Product Series

ISO

Material, Body / Housing [material]

PC (Polycarbonate)

Colour, Body / Housing [colour]

Grey

In, Rated Current [A]

50

Chemical Resistant Body / Housing [body]

No

Wire / Conductor Size (Min) [min]

16 mm²

Wire / Conductor Size (Max)

10 mm²

Matching Angled Plug

ISOPA450P

Matching Straight Plug

ISOPS450P

Pin Configuration

4 round

Un, Nominal Operational Voltage, AC [V AC]

500

IP Rating

IP66

Standards Compliance

AS/NZS 3112:2004, AS/NZS 3123:2005

Warranty starts from invoice date.

Warranty period: 0

Warranty method:
